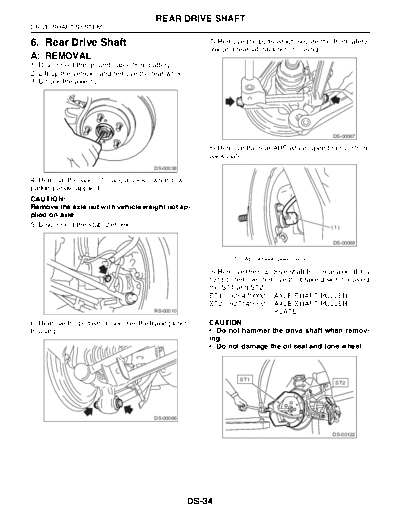

Image preview - the first page of the document



>> Download 06. Rear Drive Shaft documenatation <<

Text preview - extract from the document

                                         REAR DRIVE SHAFT
DRIVE SHAFT SYSTEM

6. Rear Drive Shaft                                      7) Remove the bolts which secure the front lateral
                                                         link and rear lateral link to housing.
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Lift-up the vehicle, and remove the rear wheel.
3) Unlock the axle nut.




                                                                                                   DS-00067

                                                         8) Remove the rear ABS wheel speed sensor from
                                                         back plate.
                                        DS-00038

4) Remove the axle nut using a socket wrench with
parking brake applied.
CAUTION:
Remove the axle nut with vehicle weight not ap-
plied on axle.
5) Disconnect the stabilizer link.                                                                (1)


                                                                                                   DS-00069


                                                                (1) ABS wheel speed sensor

                                                         9) Remove the rear drive shaft from rear axle. If it is
                                                         hard to remove, remove the brake disk rotor using
                                                         the ST1 and ST2.
                                                         ST1 926470000 AXLE SHAFT PULLER
                                                         ST2 927140000 AXLE SHAFT PULLER
                                        RS-00010                             PLATE
6) Remove the bolt which secures the trailing link to    CAUTION:
housing.
