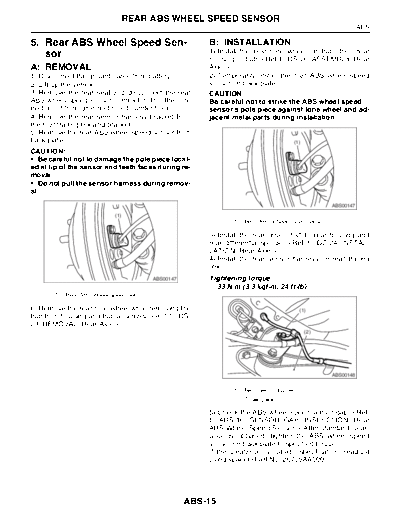

Image preview - the first page of the document
>> Download 05. Rear ABS Wheel Speed Sensor documenatation <<
Text preview - extract from the document
REAR ABS WHEEL SPEED SENSOR
ABS
5. Rear ABS Wheel Speed Sen- B: INSTALLATION
sor 1) Install the rear tone wheel on hub, then rear
housing on hub.
1) Disconnect the ground cable from battery. 2) Temporarily install the rear ABS wheel speed
2) Lift-up the vehicle. sensor on back plate.
3) Remove the rear seat and disconnect the rear CAUTION:
ABS wheel speed sensor connector. Pull the con- Be careful not to strike the ABS wheel speed
nector out from grommet hole to under floor. sensor's pole piece against tone wheel and ad-
4) Remove the rear sensor harness bracket from jacent metal parts during installation.
the rear trailing link and bracket.
5) Remove the rear ABS wheel speed sensor from
back plate. (1)
CAUTION:
