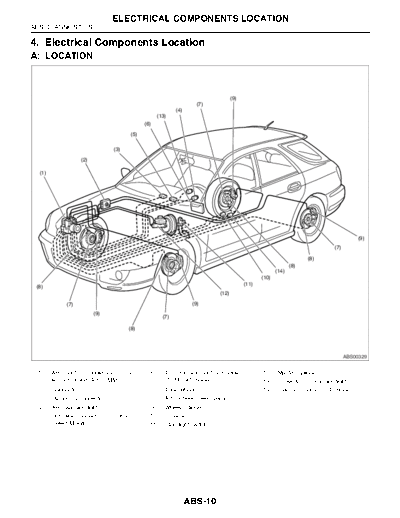

Image preview - the first page of the document
>> Download 04. Electrical Components Location documenatation <<
Text preview - extract from the document
ELECTRICAL COMPONENTS LOCATION
ABS (DIAGNOSTICS)
4. Electrical Components Location
A: LOCATION
(9)
(7)
(4)
(13)
(6)
(5)
(3)
(2)
(1)
(9)
(7)
(8)
(8)
(14)
(10)
(8) (11)
(12)
(7) (9)
(9)
(7)
(8)
ABS00329
(1) ABS control module and hydrau- (6) Transmission control module (12) Master cylinder
lic control unit (ABSCM&H/U) (TCM) (AT model) (13) Brake & EBD warning light
(2) Connector (7) Tone wheel (14) Lateral G sensor (STi model)
(3) Diagnosis connector (8) ABS wheel speed sensor
(4) ABS warning light (9) Wheel cylinder
(5) Data link connector (for Subaru (10) G sensor
Select Monitor) (11) Stop light switch
ABS-10
ELECTRICAL COMPONENTS LOCATION
ABS (DIAGNOSTICS)
(13)
(1)
BRAKE
ABS00101 ABS-00379
(3)
(10)
ABS00102 ABS00106
FRONT
(5)
(8)
ABS00344 (7) ABS00107
REAR
(7)
(8)
(14)
ABS00104 ABS00345
ABS-11
