                                    CONTROL MODULE I/O SIGNAL
ABS (DIAGNOSTICS)

5. Control Module I/O Signal
A: ELECTRICAL SPECIFICATION

                                   (1)




                                                       (2)




                                           B301


                      1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
                       16 17 18 19 20 21 22
                                            23 24 25 26
                      27 28 29 30 31

                                                                                                 ABS00108

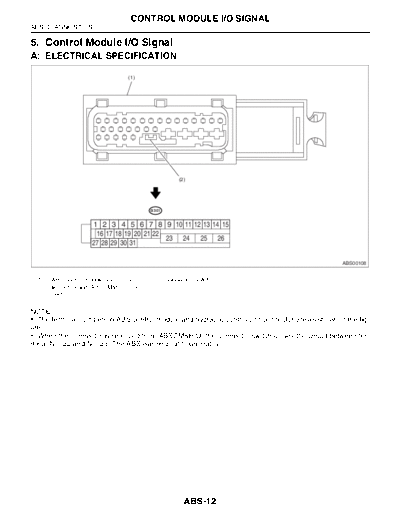

 (1)   ABS control module and hydrau-      (2)    Connector switch
       lic control unit (ABSCM&H/U) con-
       nector

NOTE:
