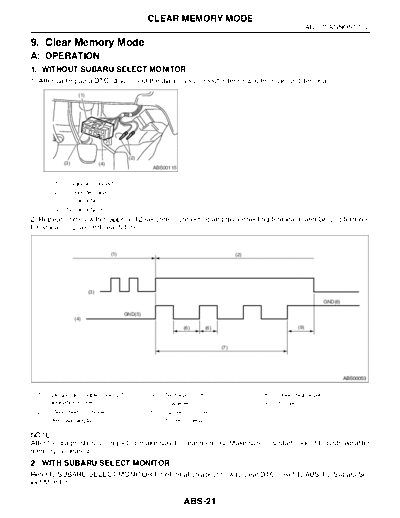

Image preview - the first page of the document
>> Download 09. Clear Memory Mode documenatation <<
Text preview - extract from the document
CLEAR MEMORY MODE
ABS (DIAGNOSTICS)
9. Clear Memory Mode
A: OPERATION
1. WITHOUT SUBARU SELECT MONITOR
1) After calling up a DTC, disconnect the diagnosis connector terminal 6 from Ground terminal.
(1)
(2)
(3) (4)
ABS00115
(1) Diagnosis connector
(2) Ground terminal
(3) Terminal No. 3
(4) Terminal No. 6
2) Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 6 and Ground terminal
for at least 0.2 seconds each time.
(1) (2)
(3)
GND(8)
GND(5)
(4)
(6) (6) (9)
(7)
ABS00053
(1) Diagnostic trouble code (DTC) (4) Terminal No. 8 (8) Open (high level)
indication mode (5) Low level (9) 1.5 sec.
(2) Clear memory mode (6) 0.2 sec. or more
(3) ABS warning lamp (7) 12 sec. or less
NOTE:
After the diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after
memory is cleared.
2. WITH SUBARU SELECT MONITOR
Refer to SUBARU SELECT MONITOR for information about how to clear DTC.
ABS-21
