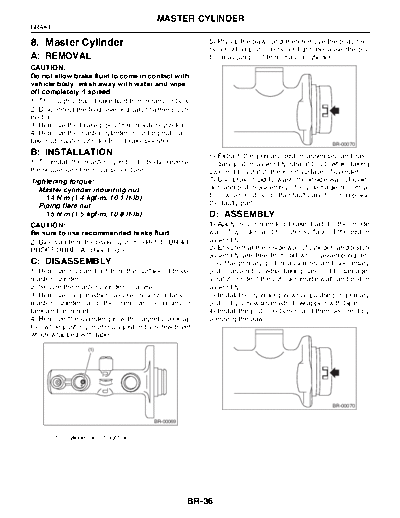

Image preview - the first page of the document
>> Download 08. Master Cylinder documenatation <<
Text preview - extract from the document
MASTER CYLINDER
BRAKE
8. Master Cylinder 5) Pry up the pawl, and then remove the piston re-
tainer. Hold piston retainer tight, because the pis-
A: REMOVAL ton may jump out from master cylinder.
CAUTION:
Do not allow brake fluid to come in contact with
vehicle body; wash away with water and wipe
off completely if spilled.
1) Thoroughly drain brake fluid from reservoir tank.
2) Disconnect the fluid level indicator harness con-
nector.
3) Remove the brake pipes from master cylinder.
4) Remove the master cylinder mounting nuts, and
take out master cylinder from brake booster. BR-00070
B: INSTALLATION 6) Extract the primary piston assembly and sec-
1) To install the master cylinder to body, reverse ondary piston assembly straight out, while taking
the sequence of removal procedure. care not to scratch the inner surface of cylinder.
Tightening torque: 7) Use brake fluid to wash the inside wall of cylin-
Master cylinder mounting nut der, and piston assembly. If any damage, deforma-
14 N◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
