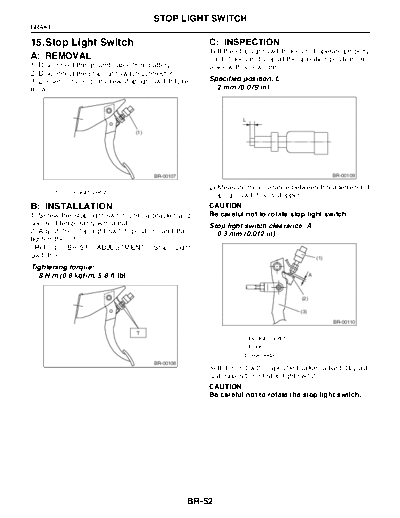

Image preview - the first page of the document



>> Download 15. Stop Light Switch documenatation <<

Text preview - extract from the document

                                        STOP LIGHT SWITCH
BRAKE

15.Stop Light Switch                                   C: INSPECTION
                                                       1) If the stop light switch does not operate properly
A: REMOVAL                                             (or if it does not stop at the specified position), re-
1) Disconnect the ground cable from battery.           place with a new one.
2) Disconnect the stop light switch connector.
3) Loosen nuts, and unscrew stop light switch to re-   Specified position: L
move.                                                    2 mm (0.079 in)



                                                                  L

                                  (1)




                                        BR-00107                                                       BR-00109

                                                       2) Measure the clearance between threaded end of
        (1) Stop light switch
                                                       stop light switch and stopper.
B: INSTALLATION                                        CAUTION:
1) Screw the stop light switch onto a bracket and      Be careful not to rotate stop light switch.
secure it temporarily with a nut.                      Stop light switch clearance: A
2) Adjust the stop light switch position, and then       0.3 mm (0.012 in)
tighten the nut.
                                                                                         (1)

Tightening torque:
  8 N
