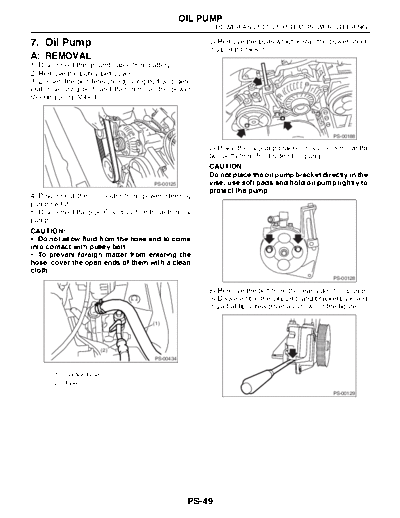

Image preview - the first page of the document
>> Download 07. Oil Pump documenatation <<
Text preview - extract from the document
OIL PUMP
POWER ASSISTED SYSTEM (POWER STEERING)
7. Oil Pump 6) Remove the bolts which install the power steer-
ing pump bracket.
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the pulley belt cover.
3) Loosen the belt tension adjusting bolt and gen-
erator securing bolt, and then remove the power
steering pump V-belt.
PS-00188
7) Place the oil pump bracket in a vise, remove the
two bolts from front side of oil pump.
CAUTION:
Do not place the oil pump bracket directly in the
PS-00125 vise; use soft pads and hold oil pump lightly to
protect the pump.
4) Disconnect the connector from power steering
pump switch.
5) Disconnect the pipe C and suction hose from oil
pump.
CAUTION:
