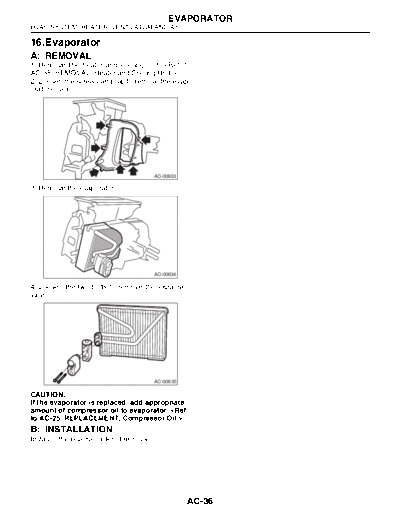

Image preview - the first page of the document
16. Evaporator


>> Download 16. Evaporator documenatation <<

Text preview - extract from the document
                                                EVAPORATOR
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

16.Evaporator
A: REMOVAL
1) Remove the heater and cooling unit.
2) Loosen the screws and clip to remove the evap-
orator cover.




                                           AC-00633

3) Remove the evaporator.




                                           AC-00634

4) Loosen the two bolts to remove the expansion
valve.




                                           AC-00635

CAUTION:
If the evaporator is replaced, add appropriate
amount of compressor oil to evaporator.
B: INSTALLATION
Install in the reverse order of removal.




                                                      AC-36
