ELECTRICAL COMPONENTS LOCATION
HVAC SYSTEM (AUTO A/C) (DIAGNOSTICS)
3. Electrical Components Location
A: LOCATION

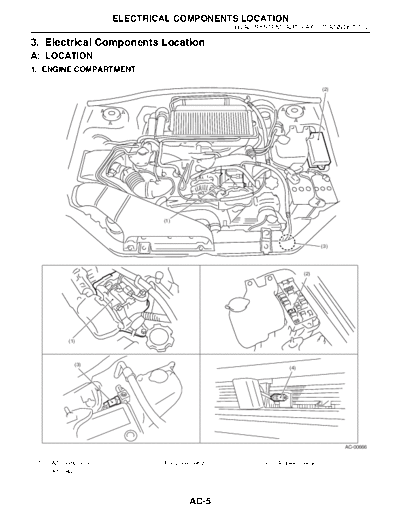

1. ENGINE COMPARTMENT
(2)
(1)
(3)
(2)
(1)
(3)
(4)
AC-00666
(1) A/C compressor (3) Pressure switch (4) Ambient sensor
(2) A/C relay
AC-5
ELECTRICAL COMPONENTS LOCATION
HVAC SYSTEM (AUTO A/C) (DIAGNOSTICS)
2. PASSENGER COMPARTMENT
(7)
(6) (4)
(8) (5) (3) (2)
(1)
(4)
(6)
(3) (5)
(1)
(2)
(7)
AC-00667
(1) Evaporator sensor (4) Intake door actuator (7) Sunload sensor
(2) Blower motor (5) Air mix door actuator (8) In-vehicle sensor
(3) Blower motor resistor (6) Mode door actuator (built-in Auto A/C control module)
AC-6
