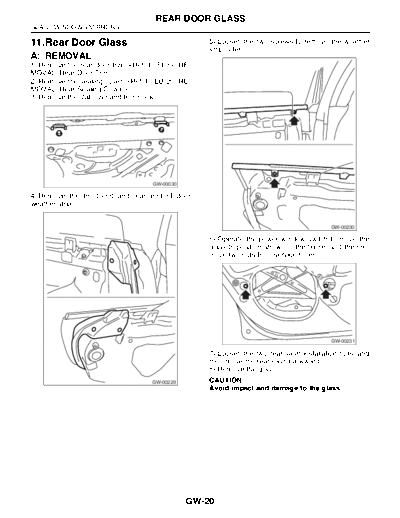

                                      REAR DOOR GLASS
GLASS/WINDOWS/MIRRORS

11.Rear Door Glass                                  5) Loosen the two screws to remove the weather
                                                    strip outer.
A: REMOVAL
1) Remove the rear door trim.
2) Remove the sealing cover.
3) Remove the stabilizer and trim hook.




                                     GW-00030

4) Remove the front end and rear end of door
weather strip.


                                                                                          GW-00230

                                                    6) Operate the power window switch to move the
                                                    glass to position shown in the figure, and then re-
                                                    move two nuts from service holes.




                                                                                          GW-00231

                                                    7) Loosen the two rear sash installation nuts, and
                                                    then move the rear sash backward.
                                                    8) Remove the glass.
                                     GW-00229       CAUTION:
                                                    Avoid impact and damage to the glass.




                                                GW-20
                                         REAR DOOR GLASS
                                                                                GLASS/WINDOWS/MIRRORS

B: INSTALLATION                                         2) Adjust the contact degree of glass using the fol-
1) Install in the reverse order of removal.             lowing dimensions as a guide line.
NOTE:
Make sure the glass stay is placed securely in                                                     (1)

sash.                                                                 A

2) Adjust the rear door glass.                                            A

Tightening torque:
  Refer to COMPONENT in General Descrip-
  tion.                                                            A-A         GW-00233
C: ADJUSTMENT
NOTE:                                                          (1) 2 -- 3 mm (0.079 -- 0.118 in)
The rear door glass, as a rule, should be adjusted             (2) 6 mm (0.236 in)
in the same manner as front door glass, although
they are different in dimension. Special notes for      NOTE:
the rear glass are given below.
