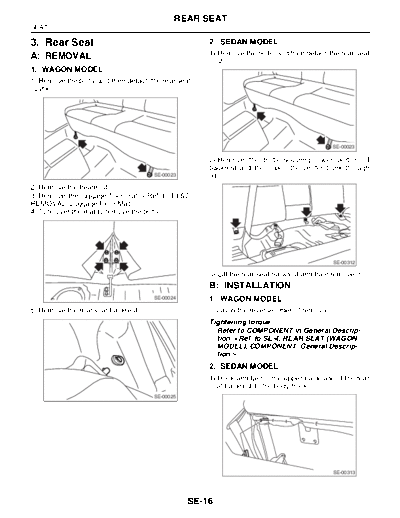

Image preview - the first page of the document



>> Download 03. Rear Seat documenatation <<

Text preview - extract from the document

                                             REAR SEAT
SEATS

3. Rear Seat                                         2. SEDAN MODEL
A: REMOVAL                                           1) Remove the bolts, and then detach the rear seat
                                                     cushion.
1. WAGON MODEL
1) Remove the bolts, and then detach the rear seat
cushion.




                                                                                                SE-00023

                                                     2) Remove the bolts securing lower portion of
                                                     backrest and then open the center trunk through
                                      SE-00023       lid.
2) Remove the headrest.
3) Remove the luggage floor mat.
4) Turn over the mat to remove the bolts.




                                                                                                SE-00312

                                                     3) Lift the rear seat backrest and then remove it.
                                                     B: INSTALLATION
                                      SE-00024       1. WAGON MODEL
5) Remove the rear seat backrest.                    Install in the reverse order of removal.
                                                     Tightening torque:
                                                       Refer to COMPONENT in General Descrip-
                                                       tion.
                                                     2. SEDAN MODEL
                                                     1) Hook and fasten the upper-back side of the rear
                                                     seat backrest to the body hook.
                                      SE-00025




                                                                                                SE-00313




                                                 SE-16
                                              REAR SEAT
                                                                                                           SEATS

2) Tighten the bolts.                                 3) Remove the hog rings (A) on front side of cush-
                                                      ion pad, and remove the cover.




                                       SE-00312                                      : (A)
                                                                                                     SE-00027
3) Hook and fasten the seat cushion to the hook on
the lower part of the rear seat backrest.             4) Remove the hog rings (A) behind of seat cush-
                                                      ion.




                                       SE-00314                                        : (A)
                                                                                                     SE-00028
Tightening torque:
  Refer to COMPONENT in General Descrip-              5) Remove the hog rings (A), and then remove the
  tion.
C: DISASSEMBLY
1. WAGON MODEL
1) Remove the rear seat.
2) Remove the hog rings (A) behind of seat back-
rest.                                                                                        : (A)
                                                                                                     SE-00029


                                                      2. SEDAN MODEL
                                                      1) Remove the rear seat.
                                                      2) Remove two nuts, and then remove the armrest
                                                      assembly.

                               : (A)
                                       SE-00026




                                                                                                     SE-00141


                                                  SE-17
                                                REAR SEAT
SEATS

3) Remove the hog rings (A) behind of seat back-        5) Remove the hog rings (A) behind of seat cush-
rest.                                                   ion.
