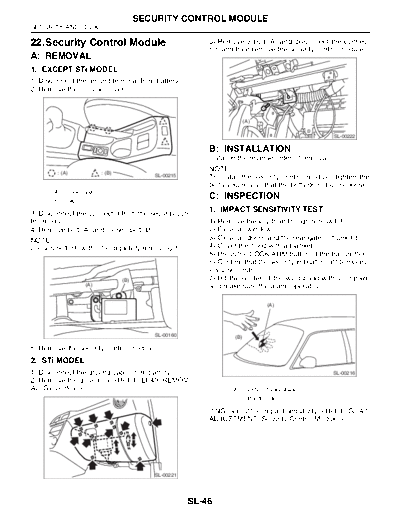

Image preview - the first page of the document



>> Download 22. Security Control Module documenatation <<

Text preview - extract from the document

                                     SECURITY CONTROL MODULE
SECURITY AND LOCKS

22.Security Control Module                             3) Remove a bolt (A) and disconnect the connec-
                                                       tor, and then remove the security control module.
A: REMOVAL
1. EXCEPT STi MODEL
1) Disconnect the ground terminal from battery.
2) Remove the console cover.



                                                                     (A)


                                                                                                  SL-00222

                                                       B: INSTALLATION
                                                       Install in the reverse order of removal.
                                                       NOTE:
        : (A)          : (B)
                                        SL-00215       To install the security control module, tighten the
                                                       bolts securely so that the bolts do not come loose.
      (A) Hook pawl
      (B) Clip
                                                       C: INSPECTION
3) Disconnect the connector from the security con-
                                                       1. IMPACT SENSITIVITY TEST
trol module.                                           1) Remove the key from the ignition switch.
4) Remove bolt (A) and loosen bolt (B).                2) Close all windows.
NOTE:                                                  3) Close all doors and the rear gate or trunk lid.
Loosen bolt (B) without completely removing it.        4) Cover the hood with a blanket.
                                                       5) Press the LOCK/ARM button of the transmitter.
                                                       6) Confirm that the security indicator light blinks ev-
                                                       ery 2 seconds.
                               (B)                     7) Hit the center of the windshield with your palm
                 (A)                                   and make sure the alarm operates.

                                                                           (A)




                                        SL-00160               (B)

5) Remove the security control module.
2. STi MODEL
1) Disconnect the ground cable from battery.                                                      SL-00216
2) Remove the glove box.                                                (A) Center of windshield
                                                              (B) Hit with palm

                                                       If NG, adjust the impact sensitivity.




                                        SL-00221




                                                   SL-46
                                     SECURITY CONTROL MODULE
                                                                SECURITY AND LOCKS

D: ADJUSTMENT
1. IMPACT SENSITIVITY
NOTE:
Before adjustment, make sure the security control
module has been securely installed on the bracket.
1) Remove the security control module.
2) Adjust the sensitivity adjust screw in the security
control module.
NOTE:
After adjusting, be sure to plug the adjust screw
hole.


                              Max.



                                      Min.




                                             SL-00041

3) Install the security control module.
4) Perform the impact sensitivity test.




                                                        SL-47
