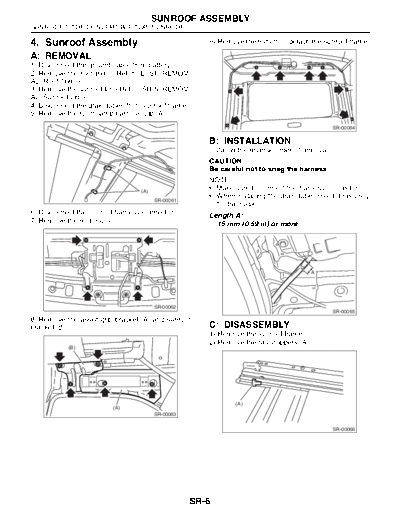

Image preview - the first page of the document



>> Download 04. Sunroof Assembly documenatation <<

Text preview - extract from the document

                                       SUNROOF ASSEMBLY
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

4. Sunroof Assembly                                  9) Remove the nuts then detach the sunroof frame.

A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the roof trim.
3) Remove the sunroof lid.
4) Disconnect the drain tubes from sunroof frame.
5) Remove the room lamp harness clip (A).
                                                                                                SR-00064

                                                     B: INSTALLATION
                                                     Install in the reverse order of removal.
                                                     CAUTION:
                                                     Be careful not to snag the harness.
                                                     NOTE:
                                 (A)
