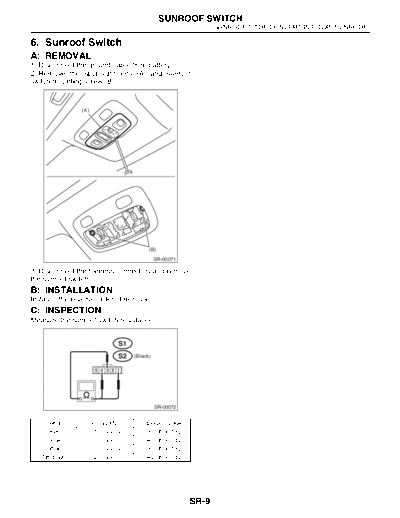

Image preview - the first page of the document
>> Download 06. Sunroof Switch documenatation <<
Text preview - extract from the document
SUNROOF SWITCH
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
6. Sunroof Switch
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the spot light lens (A) and sunroof
switch mounting screw (B).
(A)
(B)
SR-00071
3) Disconnect the harness connectors and remove
the sunroof switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the sunroof switch resistance.
S1
S2 (Black)
SR-00072
Switch Terminal No. Standard value
Open S1: 3 and 4 Less than 1
Close S1: 1 and 3 Less than 1
Tilt-up S2: 3 and 4 Less than 1
Tilt-down S2: 1 and 3 Less than 1
SR-9
SUNROOF SWITCH
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
SR-10
