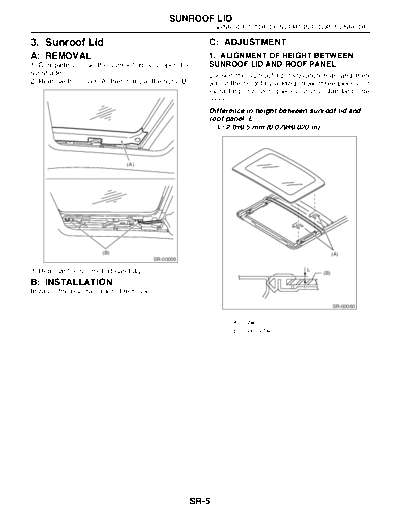

Image preview - the first page of the document
>> Download 03. Sunroof Lid documenatation <<
Text preview - extract from the document
SUNROOF LID
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
3. Sunroof Lid C: ADJUSTMENT
A: REMOVAL 1. ALIGNMENT OF HEIGHT BETWEEN
1) Completely close the sunroof lid and open the SUNROOF LID AND ROOF PANEL
sunshade. Loosen the sunroof lid installation nuts and then
2) Remove the cover (A) then remove the nuts (B). adjust the height by adding (max: three pieces) or
extracting (min: zero pieces) shims (standard: one
piece).
Difference in height between sunroof lid and
roof panel: L
