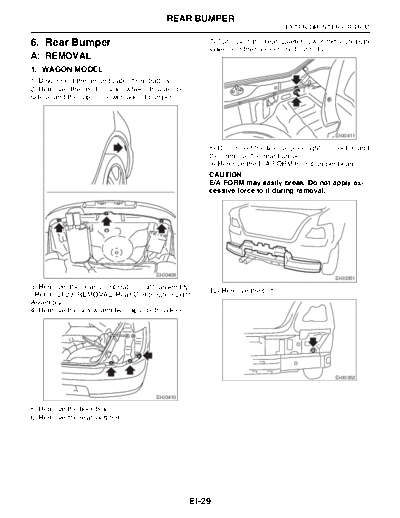

Image preview - the first page of the document



>> Download 06. Rear Bumper documenatation <<

Text preview - extract from the document

                                        REAR BUMPER
                                                                           EXTERIOR/INTERIOR TRIM

6. Rear Bumper                                     7) Turn over the rear quarter lower trims on both
                                                   sides, and then loosen the four nuts.
A: REMOVAL
1. WAGON MODEL
1) Disconnect the ground cable from battery.
2) Remove the bolt inside wheel house (both
sides), and the clips on lower side of bumper.




                                                                                           EI-00411

                                                   8) Disconnect the license plate light connector, and
                                                   then remove the rear bumper.
                                                   9) Remove the E/A FORM from bumper beam.
                                                   CAUTION:
                                                   E/A FORM may easily break. Do not apply ex-
                                                   cessive force to it during removal.




                                    EI-00409
                                                                                           EI-00351
3) Remove the rear combination light assembly.
                                                   10) Remove the bolt.

4) Remove the screw and two clips (both sides).




                                                                                           EI-00352



                                    EI-00410

5) Remove the floor box.
6) Remove the rear skirt trim.




                                               EI-29
                                             REAR BUMPER
EXTERIOR/INTERIOR TRIM

11) Remove the three bolts, then remove the             15) Remove the upper bracket from body.
bumper beam.
NOTE:
In the case of right side, remove the canister first.
Loosen the bolt, and then remove the bumper
beam.




                                                                                                   EI-00473

                                                        2. SEDAN MODEL
                                                        Refer to description about removal of rear bumper
                                                        of wagon model.

12) Remove the five clips, and then remove the          B: INSTALLATION
bumper upper beam.                                      1. WAGON MODEL
                                                        Install in the reverse order of removal.
                                                        Tightening torque:
                                                          Refer to COMPONENT in General Descrip-
                                                          tion.

                                                        2. SEDAN MODEL
                                                        Install in the reverse order of removal.
                                         EI-00412       Tightening torque:
                                                          Refer to COMPONENT in General Descrip-
13) Remove the license plate light.                       tion.

                                                        C: REPAIR
                                                        Refer to description about repair of front bumper.





                                         EI-00472

14) Remove the six clips, and then remove the
bumper side cover.




                                         EI-00532


                                                    EI-30
