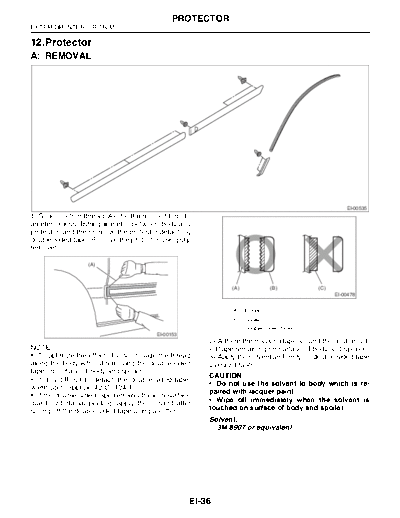

Image preview - the first page of the document
>> Download 12. Protector documenatation <<
Text preview - extract from the document
PROTECTOR
EXTERIOR/INTERIOR TRIM
12.Protector
A: REMOVAL
EI-00535
1) Slide in a thin thread (A) of 0.8 mm (0.031 in) di-
ameter or less (fishing line etc.) between body and
protector, and then remove the protector detaching
double-sided tape. Remove the protector using clip
remover.
(A)
(A) (B) (C)
EI-00478
(A) Panel
(B) Spoiler
(C) Double-sided tape
EI-00153
2) Adhere the masking tape around the double-sid-
NOTE: ed tape remaining on surface of body and spoiler.
