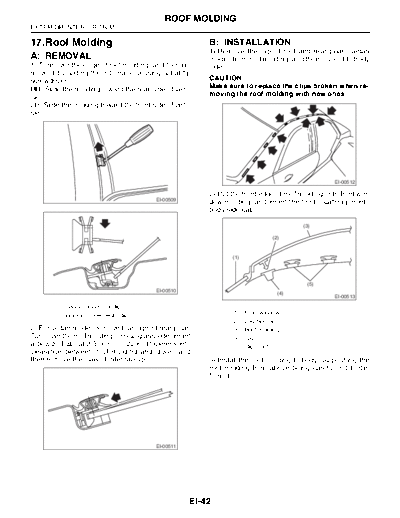

Image preview - the first page of the document



>> Download 17. Roof Molding documenatation <<

Text preview - extract from the document

                                            ROOF MOLDING
EXTERIOR/INTERIOR TRIM

17.Roof Molding                                         B: INSTALLATION
                                                        1) Remove the clip of roof and rear pillar (sedan
A: REMOVAL                                              model) from roof molding, and then install it to body
1) Turn over the edge of roof molding, and then re-     side.
move it by sliding the internal clip using a flat tip
screwdriver.                                            CAUTION:
RH: Slide the molding toward the rear side of vehi-     Make sure to replace the clips broken when re-
cle.                                                    moving the roof molding with new ones.
LH: Slide the molding toward the front side of vehi-
cle.




                                                                                                 EI-00512

                                                        2) Put the front edge of roof molding onto front win-
                                         EI-00509
                                                        dow molding, and insert the front locating pin into
                                                        body side cap.

                                                                                       (3)

                                                                              (2)


                                                               (1)




                                                                                        (5)
                                         EI-00510
                                                                                (4)
                                                                                                 EI-00513

           Sedan model: six clips
           Wagon model: eight clips                            (1)   Front window
                                                               (2)   Locating pin
2) For sedan model, remove four clips of rear pillar.          (3)   Roof molding
Turn over the roof molding on rear glass side, insert          (4)   Cap
a board of about 0.5 mm (0.020 in) thickness into              (5)   Clip (roof)
clearance between roof molding and glass, and
then remove the claw of internal clip.                  3) Install the roof molding to body, by pushing the
                                                        roof molding from above being careful not to de-
                                                        form it.




                                         EI-00511




                                                    EI-42
