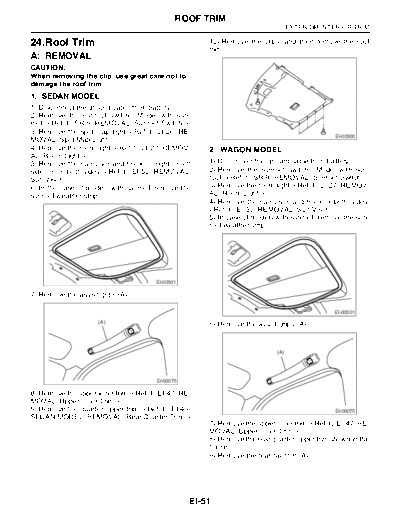

Image preview - the first page of the document



>> Download 24. Roof Trim documenatation <<

Text preview - extract from the document

                                               ROOF TRIM
                                                                                  EXTERIOR/INTERIOR TRIM

24.Roof Trim                                           10) Remove the clips, and then remove the roof
                                                       trim.
A: REMOVAL
CAUTION:
When removing the clip, use great care not to
damage the roof trim.
1. SEDAN MODEL
1) Disconnect the ground cable from battery.
2) Remove the sunroof switch. (Model with sun-
roof)
3) Remove the spot map light.
4) Remove the room light.
5) Remove the sun visor and hook on right or left      1) Disconnect the ground cable from battery.
side, or on both sides.                                             roof)
6) In the case of models with sunroof, remove the      3) Remove the room light.
                                                       4) Remove the sun visor and hook or both sides.

                                                       5) In case of models with sunroof, remove the sun-
                                                       roof weather strip.




                                       EI-00501

7) Remove the assist-grips (A).

                                                                                              EI-00501

                     (A)
                                                       6) Remove the assist-grips (A).


                                                                            (A)




                                        EI-00075

8) Remove the upper inner trim.
9) Remove the quarter upper trim.
                                                       7) Remove the upper inner trim.
                                                       8) Remove the rear quarter upper trim shown in the
                                                       figure.
                                                       9) Remove the rear rail trim (A).




                                                   EI-51
                                                       ROOF TRIM
EXTERIOR/INTERIOR TRIM

10) Remove the rear quarter upper trim (B) of both
sides.


                            (B)            (A)




                                                 (C)



                 (D)

         : (E)

                                            EI-00498


       (E) Clip

11) Remove the clips, and then remove the roof
trim.




                                            EI-00543

B: INSTALLATION
Install in the reverse order of removal.




                                                         EI-52
