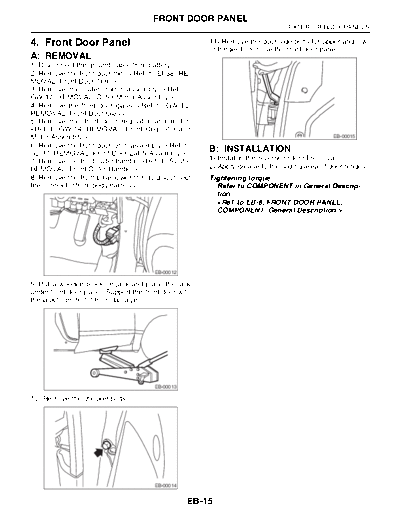

Image preview - the first page of the document



>> Download 04. Front Door Panel documenatation <<

Text preview - extract from the document

                                       FRONT DOOR PANEL
                                                                               EXTERIOR BODY PANELS

4. Front Door Panel                                   11) Remove the door-side bolts for upper and low-
                                                      er hinges to remove the front door panel.
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the front door trim.
3) Remove the outer mirror assembly.
4) Remove the front door glass.
5) Remove the front door regulator and motor.
                                                                             EB-00015

6) Remove the front door latch assembly.
                                                      B: INSTALLATION
7) Remove the front outer handle.                          2) Apply grease to the sliding area of door hinges.
8) Remove the front pillar lower trim to disconnect   Tightening torque:
the connector from body harness.                        Refer to COMPONENT in General Descrip-
                                                        tion.





                                       EB-00012

9) Put a wooden block on jack and place the jack
under front door panel. Support the front door with
the jack to protect it from damage.




                                       EB-00013

10) Remove the checker bolts.




                                       EB-00014


                                                  EB-15
                                         FRONT DOOR PANEL
EXTERIOR BODY PANELS

C: ADJUSTMENT
1) Using the ST, loosen the body-side bolts of up-
per and lower hinges to align the position of front
door panel longitudinally and vertically.
ST 925610000         DOOR HINGE WRENCH




                                   ST




                                         EB-00016

2) Loosen the screw (A) and tap striker (B) using a
plastic hammer to adjust striker to align the position
of front door panel laterally at the rear end.
CAUTION:
Do not use an impact wrench. Welding area on
the striker nut plate is easily broken.


                  (A)      (B)




                                         EB-00017




                                                    EB-16
