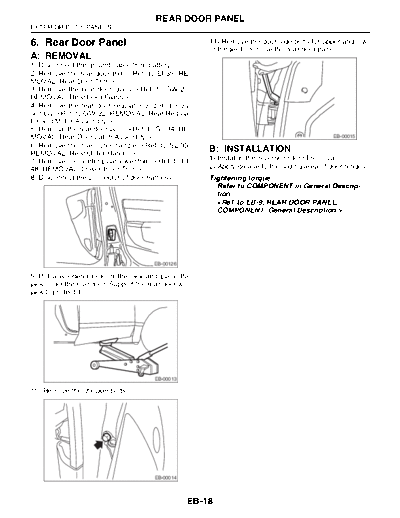

Image preview - the first page of the document



>> Download 06. Rear Door Panel documenatation <<

Text preview - extract from the document

                                        REAR DOOR PANEL
EXTERIOR BODY PANELS

6. Rear Door Panel                                     11) Remove the door-side bolts for upper and low-
                                                       er hinges to remove the rear door panel.
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the rear door trim.
3) Remove the rear door glass.
4) Remove the rear door regulator and motor as-
sembly.
5) Remove the rear door latch.                                                              EB-00015

6) Remove the rear outer handle.
                                                       B: INSTALLATION
7) Remove the center pillar lower trim.                         2) Apply grease to the sliding area of door hinges.
8) Disconnect the connector of door harness.           Tightening torque:
                                                         Refer to COMPONENT in General Descrip-
                                                         tion.





                                        EB-00126

9) Put a wooden block on the jack and place the
jack under the rear door. Support the rear door with
jack to protect it.




                                        EB-00013

10) Remove the checker bolts.




                                        EB-00014




                                                   EB-18
                                          REAR DOOR PANEL
                                                            EXTERIOR BODY PANELS

C: ADJUSTMENT
1) Open the rear door, and then loosen the door-
side bolts of upper and lower hinges to align the po-
sition of rear door panel longitudinally and vertical-
ly.




                                         EB-00015

2) Loosen the screw (A), and then tap striker (B)
using plastic hammer to adjust striker to align the
position of rear door panel laterally at the rear end.
CAUTION:
Do not use an impact wrench. The welding area
on the striker nut plate is easily broken.


                  (A)      (B)




                                         EB-00017




                                                    EB-19
