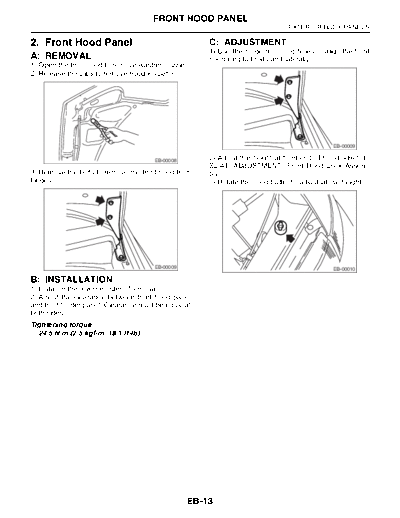

Image preview - the first page of the document
02. Front Hood Panel


>> Download 02. Front Hood Panel documenatation <<

Text preview - extract from the document
                                      FRONT HOOD PANEL
                                                                              EXTERIOR BODY PANELS

2. Front Hood Panel                                  C: ADJUSTMENT
                                                     1) Use the hinge mounting holes to align the front
A: REMOVAL                                           hood longitudinally and laterally.
1) Open the front hood to remove washer nozzles.
2) Release the clips to remove hood insulator.




                                                                                            EB-00009

                                      EB-00008       2) Adjust the height at front end of hood.
hinges.                                              3) Rotate the hood buffer to adjust lateral height.




                                      EB-00009                                              EB-00010

B: INSTALLATION
1) Install in the reverse order of removal.
2) Adjust the clearance between front hood panel
and front fender panel. Clearance must be equal at
both sides.
Tightening torque:
  24.5 N
