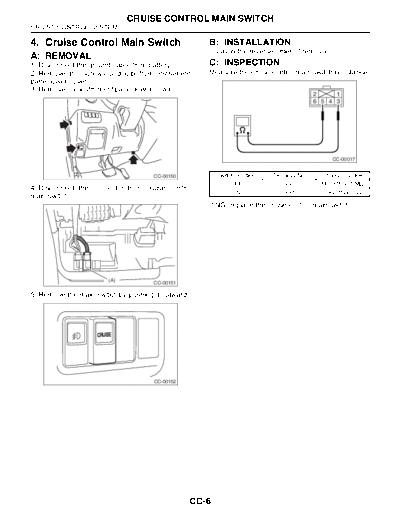

                             CRUISE CONTROL MAIN SWITCH
CRUISE CONTROL SYSTEM

4. Cruise Control Main Switch                         B: INSTALLATION
                                                      Install in the reverse order of removal.
A: REMOVAL
1) Disconnect the ground cable from battery.          C: INSPECTION
2) Remove the screws and clip from instrument         Measure the cruise control main switch resistance.
panel lower cover.
3) Remove the instrument panel lower cover.
                                                                                           2     1
                                                                                           6 5 4 3




                                                                                                 CC-00017


                                     CC-00150             Switch position   Terminal No.     Standard value
                                                               OFF            3 and 5        More than 1 M
4) Disconnect the connector from cruise control
                                                               ON             3 and 5         Less than 1
main switch.
                                                      If NG, replace the cruise control main switch.




                       (A)
                                     CC-00151

5) Remove the main switch by pushing it outward.




                                     CC-00152




                                                   CC-6
