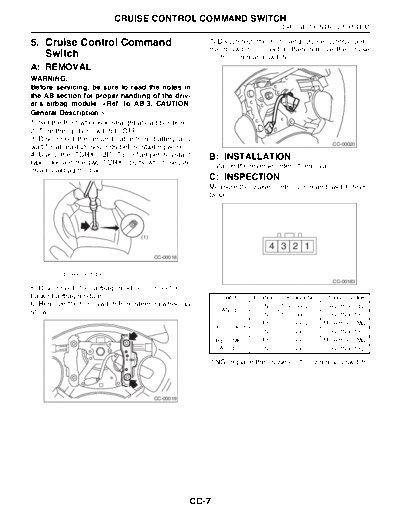

                          CRUISE CONTROL COMMAND SWITCH
                                                                                  CRUISE CONTROL SYSTEM

5. Cruise Control Command                              7) Disconnect the horn and cruise control com-
                                                       mand switch connector, then remove the cruise
   Switch                                              control command switch.
A: REMOVAL
WARNING:
Before servicing, be sure to read the notes in
the AB section for proper handling of the driv-
er's airbag module.
1) Set the front wheels in straight ahead position.
2) Turn the ignition switch to OFF.
3) Disconnect the ground cable from battery and
                                                                                                       CC-00020
wait for at least 20 seconds before starting work.
4) Using the TORX BIT T30 (Tamper resistant            B: INSTALLATION
type), loosen the two TORX bolts which secure          Install in the reverse order of removal.
driver's airbag module.
                                                       C: INSPECTION
                                                       Measure the cruise control command switch resis-
                                                       tance.




                                   (1)

                                                                             4 3 2 1
                                         CC-00018


      (1) TORX BIT T30
                                                                                                       CC-00183
5) Disconnect the airbag module connector on
back of airbag module.                                       Switch    Position    Terminal No.     Standard value
6) Remove the horn switch from steering wheel as                         ON       1 (+) and 2 (-)    Less than 1
shown.                                                      CANCEL
                                                                         ON       1 (+) and 3 (-)    Less than 1
                                                                        OFF           1 and 2       More than 1 M
                                                           SET/COAST
                                                                         ON           1 and 2        Less than 1
                                                           RESUME/      OFF           1 and 3       More than 1 M
                                                            ACCEL        ON           1 and 3        Less than 1

                                                       If NG, replace the cruise control command switch.




                                         CC-00019




                                                    CC-7
