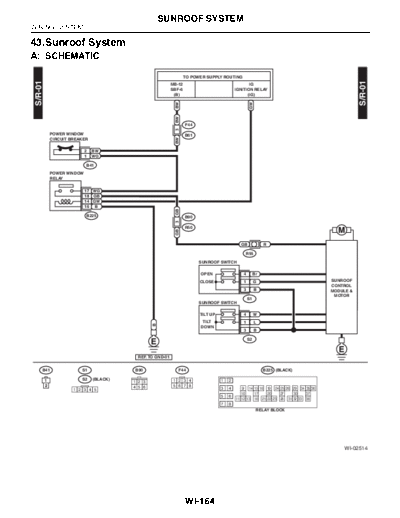

Image preview - the first page of the document
>> Download 43. Sunroof System documenatation <<
Text preview - extract from the document
SUNROOF SYSTEM
WIRING SYSTEM
43.Sunroof System
A: SCHEMATIC
TO POWER SUPPLY ROUTING
S/R-01
S/R-01
MB-12 IG
SBF-6 IGNITION RELAY
(B) (IG)
GW
BW
BW
F44
3
POWER WINDOW B61
BW
CIRCUIT BREAKER
2 BW
1 WG
B41
POWER WINDOW
RELAY
17 WG
18 GB
14 GW
16 B
GB
B225 B90
3
R50
GB
GB R
R55
SUNROOF SWITCH
OPEN 4 Br
CLOSE 1 G SUNROOF
CONTROL
3 B MODULE &
MOTOR
S1
SUNROOF SWITCH
TILT UP 4 W
TILT 1 L
B
DOWN
3 B
S2
REF. TO GND-01
B41 S1 B90 F44 B225 (BLACK)
1 S2 (BLACK) 1 2 3 4 1 2
1 2 3
2 4 5 6 5 6 7 8
1 2 3 4 5 3 4 9 14 15 16 19 24 25 26 29 34 35 36
10 17 20 27 30 37
5 6
11 12 13 18 21 22 23 28 31 32 33 38
7 8
RELAY BLOCK
WI-02514
WI-164
