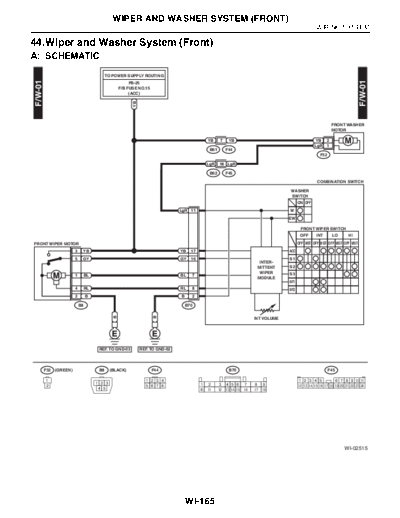

Image preview - the first page of the document
>> Download 44. Wiper and Washer System (Front) documenatation <<
Text preview - extract from the document
WIPER AND WASHER SYSTEM (FRONT)
WIRING SYSTEM
44.Wiper and Washer System (Front)
A: SCHEMATIC
TO POWER SUPPLY ROUTING
F/W-01
F/W-01
FB-25
F/B FUSE NO.15
(ACC)
YB
FRONT WASHER
MOTOR
YB 7 YB YB 2
LgR 1
B61 F44
F32
LgR 18 LgR
B62 F45
COMBINATION SWITCH
WASHER
SWITCH
ON OFF
LgR 11 W
EW
FRONT WIPER SWITCH
OFF INT LO HI
FRONT WIPER MOTOR OFF MIST OFF MIST OFF MIST OFF MIST
3 YB YB 17 ACC
5 GY GY 16 S1
INTER-
MITTENT S2
WIPER S3
1 BL BL 7
MODULE
INT1
4 RL RL 8 INT2
2 B B 2
B8 B70
B
B
INT VOLUME
REF. TO GND-03 REF. TO GND-02
F32 (GREEN) B8 (BLACK) F44 B70 F45
1 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11
1 2 3 1 2 3 4 5 6 7 8 9
2 5 6 7 8 12 13 14 15 16 17 18 19 20 21 22 23 24
4 5 10 11 12 13 14 15 16 17 18
WI-02515
WI-165
