INTERCOOLER WATER SPRAY SYSTEM
WIRING SYSTEM
47.Intercooler Water Spray System

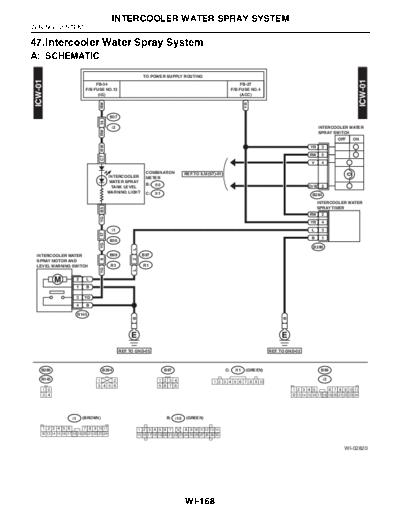

A: SCHEMATIC
TO POWER SUPPLY ROUTING
ICW-01
ICW-01
FB-34 FB-27
F/B FUSE NO.13 F/B FUSE NO.4
(IG) (ACC)
RW
YR
B37
RW 14
i2 INTERCOOLER WATER
SPRAY SWITCH
OFF ON
C7 RW
YR 3
RW 5
V 4
COMBINATION REF. TO ILM(ST)-01
INTERCOOLER METER
WATER SPRAY
B: i10 OrW 2
TANK LEVEL
WARNING LIGHT C: i11 B294
INTERCOOLER WATER
SPRAY TIMER
B5
RW 2
YG
YR 4
i1 L 3
17
B 1
B36
YG
B286
L
INTERCOOLER WATER B99 B97
8
2
SPRAY MOTOR AND
LEVEL WARNING SWITCH R3 R1
YG
L
2 L
1 B
3 YG
4 B
R145
B
B
REF. TO GND-05 REF. TO GND-02
B286 B294 B97 C: i11 (GREEN) B99
R145 1 2 1 2 3 4 i2
1 2 3 4 5 6 7 8 9 10
3 4 5 6 5 6 7 8
1 2 1 2 3 4 5 6 7 8 9 10 11
3 4 12 13 14 15 16 17 18 19 20 21 22 23 24
i1 (BROWN) B: i10 (GREEN)
1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14
12 13 14 15 16 17 18 19 20 21 22 23 24 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
WI-02820
WI-168
