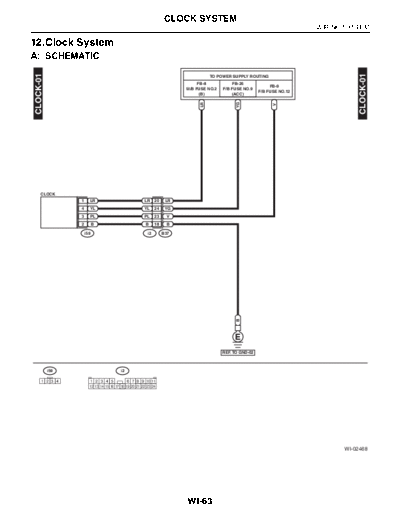

Image preview - the first page of the document
>> Download 12. Clock System documenatation <<
Text preview - extract from the document
CLOCK SYSTEM
WIRING SYSTEM
12.Clock System
A: SCHEMATIC
CLOCK-01
CLOCK-01
TO POWER SUPPLY ROUTING
FB-8 FB-26
FB-9
M/B FUSE NO.2 F/B FUSE NO.9
F/B FUSE NO.12
(B) (ACC)
YG
LR
V
CLOCK
1 LR LR 20 LR
4 YL YL 24 YG
3 PL PL 23 V
2 B B 18 B
i59 i2 B37
B
REF. TO GND-02
i59 i2
1 2 3 4 1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22 23 24
WI-02468
WI-63
