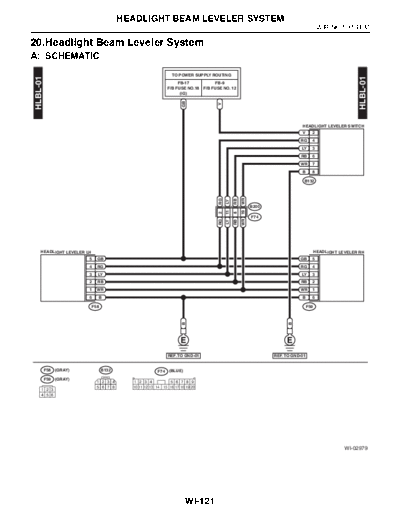

Image preview - the first page of the document
>> Download 20. Headlight Beam Leveler System documenatation <<
Text preview - extract from the document
HEADLIGHT BEAM LEVELER SYSTEM
WIRING SYSTEM
20.Headlight Beam Leveler System
A: SCHEMATIC
TO POWER SUPPLY ROUTING
HLBL-01
HLBL-01
FB-17 FB-9
F/B FUSE NO.18 F/B FUSE NO. 12
(IG)
GB
V
HEADLIGHT LEVELER SWITCH
V 2
RG 4
LY 3
RB 6
WR 7
B 8
B132
WR
RG
RB
LY
B200
11
WR 19
2
8
F74
RG
RB
LY
HEADLIGHT LEVELER LH HEADLIGHT LEVELER RH
5 GB GB 5
4 RG RG 4
3 LY LY 3
2 RB RB 2
1 WR WR 1
6 B B 6
F58 F59
B
B
REF. TO GND-01 REF. TO GND-01
F58 (GRAY) B132 F74 (BLUE)
F59 (GRAY)
1 2 3 4 1 2 3 4 5 6 7 8 9
5 6 7 8 10 11 12 13 14 15 16 17 18 19 20
1 2 3
4 5 6
WI-02979
WI-121
