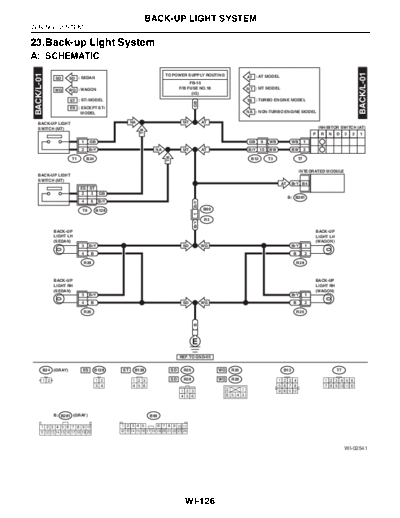

Image preview - the first page of the document
>> Download 23. Back-up Light System documenatation <<
Text preview - extract from the document
BACK-UP LIGHT SYSTEM
WIRING SYSTEM
23.Back-up Light System
A: SCHEMATIC
BACK/L-01
BACK/L-01
TO POWER SUPPLY ROUTING AT : AT MODEL
SD SD : SEDAN
FB-16
WG WG : WAGON F/B FUSE NO.18 MT : MT MODEL
(IG)
ST : STi MODEL TB : TURBO ENGINE MODEL
GB
ES : EXCEPT STi
MODEL NA : NON-TURBO ENGINE MODEL
BACK-UP LIGHT NA MT AT
SWITCH (MT) INHIBITOR SWITCH (AT)
TB
P R N D 3 2 1
1 GB GB 9 WB WB 1
2 BrY NA MT AT BrY 10 BW BW 2
TB
T1 B24 B12 T3 T7
INTEGRATED MODULE
BACK-UP LIGHT
SWITCH (MT)
AT BrY B4
ES ST
2 3 GB
B: B281
4 6 BrY
BrY
T9 B128 B99
1
R3
BrY
BACK-UP BACK-UP
LIGHT LH LIGHT LH
(SEDAN) (WAGON)
3 BrY SD WG BrY 1
4 B B 2
R28 R28
BACK-UP BACK-UP
LIGHT RH LIGHT RH
(SEDAN) (WAGON)
3 BrY BrY 1
4 B SD WG B 2
R26 R26
B
REF. TO GND-05
B24 (GRAY) ES B128 ST B128 SD R26 WG R26 B12 T7
1 2 1 2 1 2 3 SD R28 WG R28 1 2 3 4 1 2 3 4 5 6
3 4 4 5 6 5 6 7 8 7 8 9 10 11 12
1 2 3 2 1 9 10 11 12
4 5 6 6 5 4 3
B: B281 (GRAY) B99
1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11
11 12 13 14 15 16 17 18 19 20 12 13 14 15 16 17 18 19 20 21 22 23 24
WI-02541
WI-126
