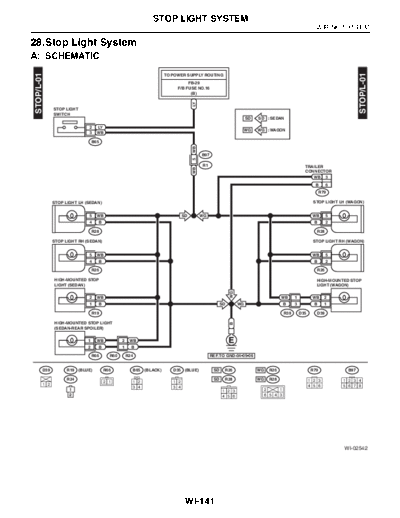

Image preview - the first page of the document
>> Download 28. Stop Light System documenatation <<
Text preview - extract from the document
STOP LIGHT SYSTEM
WIRING SYSTEM
28.Stop Light System
A: SCHEMATIC
STOP/L-01
STOP/L-01
TO POWER SUPPLY ROUTING
FB-29
F/B FUSE NO.16
(B)
LY
STOP LIGHT
SWITCH
SD SD : SEDAN
2 LY
WG WG : WAGON
3 WB
B65
WB
B97
5
R1 TRAILER
WB
CONNECTOR
WB 3
B 6
R79
STOP LIGHT LH (SEDAN) STOP LIGHT LH (WAGON)
5 WB SD WG WB 5
4 B B 2
R28 R28
STOP LIGHT RH (SEDAN) STOP LIGHT RH (WAGON)
5 WB WB 5
4 B B 2
R26 R26
HIGH-MOUNTED STOP HIGH-MOUNTED STOP
LIGHT (SEDAN) LIGHT (WAGON)
WG
2 WB WB 1 WB 2
1 B SD WG B 3 B 1
R19 R39 D35 D39
HIGH-MOUNTED STOP LIGHT
B
(SEDAN-REAR SPOILER)
1 WB 2 WB
2 B 1 B
