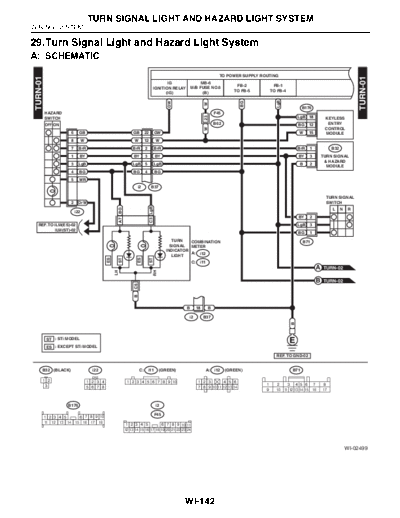

Image preview - the first page of the document
>> Download 29. Turn Signal Light and Hazard Light System documenatation <<
Text preview - extract from the document
TURN SIGNAL LIGHT AND HAZARD LIGHT SYSTEM
WIRING SYSTEM
29.Turn Signal Light and Hazard Light System
A: SCHEMATIC
TO POWER SUPPLY ROUTING
TURN-01
TURN-01
IG MB-6
FB-2 FB-1
IGNITION RELAY M/B FUSE NO.6
TO FB-5 TO FB-4
(IG) (B)
LgB
GW
BG
W
B176
HAZARD F45
23
SWITCH LgB 18 KEYLESS
OFF ON B62 BG 12 ENTRY
W
CONTROL
6 GB GB 22 GW W 15 MODULE
8 W W 12 W
7 BrR BrR 2 BrR BrR 1 B32
1 BY BY 3 BY BY 3 TURN SIGNAL
& HAZARD
3 LgB LgB 5 LgB B 2
MODULE
4 BG BG 4 BG
5 WR
i2 B37
TURN SIGNAL
2 OrW SWITCH
C3 LgB
A7 BG
L N R
i22
BY 2
REF. TO ILM(ES)-02 LgB 3
ILM(ST)-02
BG 1
TURN COMBINATION B71
SIGNAL METER
INDICATOR
A: i12
LIGHT
ES
ES
ST
ST
C: i11
A TURN-02
RH
LH
B TURN-02
C6
B
B 18 B
i2 B37
B
ST : STi MODEL
ES : EXCEPT STi MODEL
REF. TO GND-02
B32 (BLACK) i22 C: i11 (GREEN) A: i12 (GREEN) B71
1 2 1 2 3 4 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6
3 1 2 3 4 5 6 7 8
5 6 7 8 7 8 9 10 11 12 13 14
9 10 11 12 13 14 15 16 17
B176 i2
F45
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18
1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22 23 24
WI-02499
WI-142
TURN SIGNAL LIGHT AND HAZARD LIGHT SYSTEM
WIRING SYSTEM
TO POWER SUPPLY ROUTING
TURN-02
TURN-02
FB-5 FB-4
TO FB-2 TO FB-1
LgB
BG
FRONT TURN SIGNAL FRONT TURN SIGNAL
LIGHT LH LIGHT RH
3 BG LgB 3
2 B B 2
F22 F4
B
REF. TO GND-01 TRAILER
CONNECTOR
TURN-01 A LgB 22 LgB WG LgB 2
TURN-01 B BG 15 BG WG BG 4
B99 R3 B 6
R79
REAR TURN SIGNAL REAR TURN SIGNAL
LIGHT LH (SEDAN) LIGHT RH (SEDAN)
2 BG SD SD LgB 2
4 B B 4
WG
WG
R28 R26
REAR TURN SIGNAL REAR TURN SIGNAL
LIGHT LH (WAGON) LIGHT RH (WAGON)
WG
SD
SD
3 BG LgB 3
2 B WG WG B 2
R28 R26
B
SD SD : SEDAN
WG WG : WAGON
REF. TO GND-05
F4 (BLACK) SD R26 WG R26 R79 B99
F22 (BLACK) SD R28 WG R28 1 2 3 1 2 3 4 5 6 7 8 9 10 11
4 5 6 12 13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 1 2 3 2 1
4 5 6 6 5 4 3
WI-02500
WI-143
