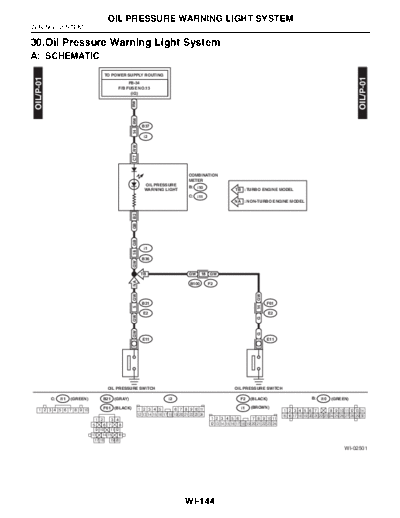

Image preview - the first page of the document
>> Download 30. Oil Pressure Warning Light System documenatation <<
Text preview - extract from the document
OIL PRESSURE WARNING LIGHT SYSTEM
WIRING SYSTEM
30.Oil Pressure Warning Light System
A: SCHEMATIC
TO POWER SUPPLY ROUTING
OIL/P-01
OIL/P-01
FB-34
F/B FUSE NO.13
(IG)
RW
RW
B37
14
i2
C7 RW
COMBINATION
METER
OIL PRESSURE
B: i10
WARNING LIGHT TB : TURBO ENGINE MODEL
C: i11
NA : NON-TURBO ENGINE MODEL
GB B2
GB
i1
18
B36
GW
TB GW 18 GW
NA
B100 F2
14 GW
GW
B21 F61
5
E2 E2
GW
G
GW
G
E11 E11
OIL PRESSURE SWITCH OIL PRESSURE SWITCH
C: i11 (GREEN) B21 (GRAY) i2 F2 (BLACK) B: i10 (GREEN)
F61 (BLACK) 1 2 3 4 5 6 7 8 9 10 11 i1 (BROWN)
1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14
12 13 14 15 16 17 18 19 20 21 22 23 24 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
1 2 3 4 1 2 3 4 5 6 7 8 9 10 11
5 6 7 8 12 13 14 15 16 17 18 19 20 21 22 23 24
9 10 11 12
13 14 15 16
17 18 19 20
WI-02501
WI-144
