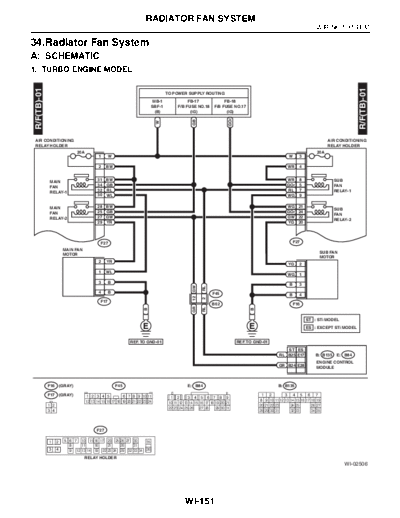

Image preview - the first page of the document
>> Download 34. Radiator Fan System documenatation <<
Text preview - extract from the document
RADIATOR FAN SYSTEM
WIRING SYSTEM
34.Radiator Fan System
A: SCHEMATIC
1. TURBO ENGINE MODEL
R/F(TB)-01
R/F(TB)-01
TO POWER SUPPLY ROUTING
MB-1 FB-17 FB-18
SBF-1 F/B FUSE NO.18 F/B FUSE NO.17
(B) (IG) (IG)
GOr
GB
W
AIR CONDITIONING AIR CONDITIONING
RELAY HOLDER RELAY HOLDER
20A 20A
1 W W 3
2 BW WR 4
31 BW WR 8 SUB
MAIN
34 GB GOr 5 FAN
FAN
32 RL RL 7 RELAY-1
RELAY-1
30 WL WG 9
MAIN 28 BW WG 21
SUB
FAN 25 GB GOr 24
FAN
RELAY-2 27 GW GW 22
RELAY-2
29 YR YG 20
F27 F27
MAIN FAN
SUB FAN
MOTOR
MOTOR
2 YR
YG 2
1 WL
WG 1
3 B
B 3
12 GW
RL
4 B F45 B 4
2
F17
B62 F16
GR
RL
B
B
ST : STi MODEL
ES : EXCEPT STi MODEL
REF. TO GND-01 REF. TO GND-01
ST ES
RL B25 E17 B: B135 E: B84
ENGINE CONTROL
GR B24 E28
MODULE
F16 (GRAY) F45 E: B84 B: B135
F17 (GRAY) 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7
1 2 3 4 5 6 7 8 9
12 13 14 15 16 17 18 19 20 21 22 23 24 8 9 10 11 12 13 14 15 16 17 18 19
10 11 12 13 14 15 16 17 18 19 20 21
1 2 20 21 22 23 24 25 26 27
22 23 24 25 26 27 28 29 30 31
3 4 28 29 30 31 32 33 34 35
F27
1 2 5 6 7 10 15 16 17 20 25 26 27 30 35
8 11 18 21 28 31
3 4 9 12 13 14 19 22 23 24 29 32 33 34 36
RELAY HOLDER
WI-02506
WI-151
RADIATOR FAN SYSTEM
WIRING SYSTEM
2. NON-TURBO ENGINE MODEL
R/F(NA)-01
R/F(NA)-01
TO POWER SUPPLY ROUTING
FB-17 MB-1 FB-18
F/B FUSE NO.18 SBF-1 F/B FUSE NO.17
(IG) (B) (IG)
GOr
GB
W
AIR CONDITIONING AIR CONDITIONING
RELAY HOLDER RELAY HOLDER
20A 20A
1 W W 3
2 BW WR 4
31 BW WR 21 SUB
MAIN
34 GB GOr 24 FAN
FAN
32 RL GW 22 RELAY
RELAY
30 WL YG 20
F27
F27
12 GW
MAIN FAN SUB FAN
2 RL
MOTOR F45 MOTOR
2 WL B62 YG 2
GR
RL
1 B B 1
F17 F16
A13 GR
A14 RL
B
B
ENGINE
A: B134 CONTROL
MODULE
REF. TO GND-01 REF. TO GND-01
F16 (BLACK) F17 (GRAY) F45 A: B134
2 1 1 2 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8
12 13 14 15 16 17 18 19 20 21 22 23 24 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
24 25 26 27 28 29 30 31 32 33 34 35
F27
1 2 5 6 7 10 15 16 17 20 25 26 27 30 35
8 11 18 21 28 31
3 4 9 12 13 14 19 22 23 24 29 32 33 34 36
RELAY HOLDER
WI-02507
WI-152
