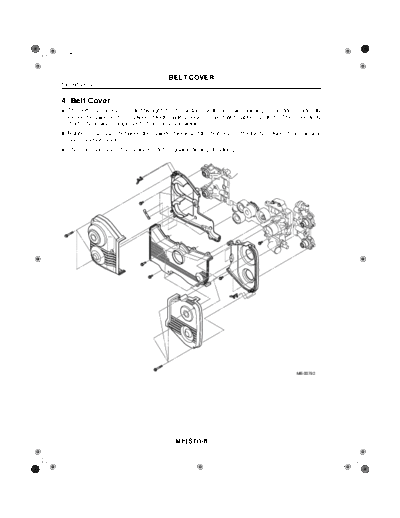

Image preview - the first page of the document
04. Belt Cover


>> Download 04. Belt Cover documenatation <<

Text preview - extract from the document
W1860BE.book Page 6 Tuesday, January 28, 2003 11:01 PM




                                                         BELT COVER
 MECHANICAL


 4. Belt Cover
   The belt cover is made of lightweight, heat resistant synthetic resin molding. It constitutes a totally
 enclosed housing with its cylinder block mating edges sealed with rubber gaskets. This effectively
 protects the inside components from dust and liquid.
    Rubber seals used between the cylinder block and the belt cover effectively reduces transmission
 of noise and vibration.
     The front belt cover has a line mark for ignition-timing checking.




                                                                                               ME-00792




                                                          ME(STi)-6
