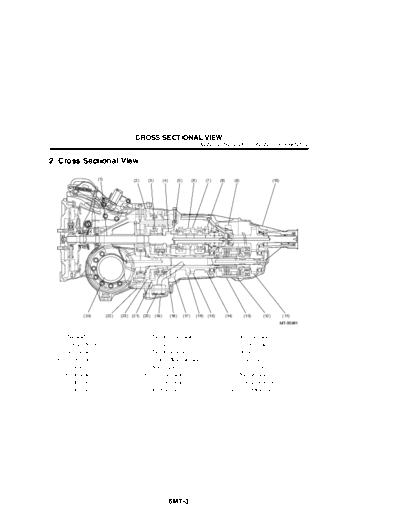

Image preview - the first page of the document
>> Download 02. Cross Sectional View documenatation <<
Text preview - extract from the document
CROSS SECTIONAL VIEW
MANUAL TRANSMISSION AND DIFFERENTIAL
2. Cross Sectional View
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
(24) (22) (23) (21) (20) (19) (18) (17) (16) (15) (14) (13) (12) (11)
MT-00981
(1) Main shaft (9) Transfer driven gear (17) 3rd driven gear
(2) Reverse idler gear (10) Extension case (18) 2nd driven gear
(3) 1st drive gear (11) Transfer drive gear (19) Oil pan
(4) 2nd drive gear (12) Center differential assembly (20) Oil strainer
(5) 3rd drive gear (13) Transmission case (21) 1st driven gear
(6) 4th drive gear (14) 6th driven gear (22) Adapter plate
(7) 5th drive gear (15) 5th driven gear (23) Reverse driven gear
(8) 6th drive gear (16) 4th driven gear (24) Front differential assembly
6MT-3
