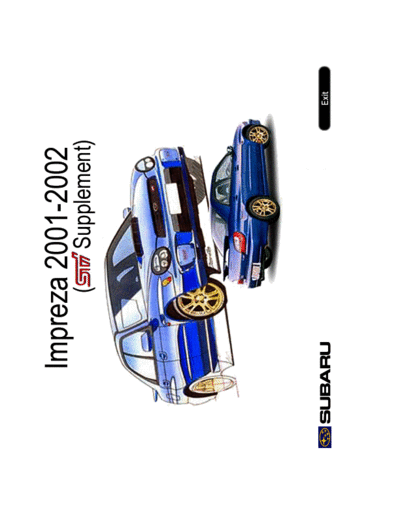

Image preview - the first page of the document
>> Download 01-02 documenatation <<
Text preview - extract from the document
2002 Model Year
PDF Service Manual
Supplement For STi Model
GENERAL INFORMATION SECTION (Pub.No.G1841GE1)
ENGINE 2 SECTION (Pub.No.G1841GE3)
TRANSMISSION SECTION (Pub.No.G1841GE4)
CHASSIS SECTION (Pub.No.G1841GE5)
BODY SECTION (Pub.No.G1841GE6)
WIRING SYSTEM SECTION (Pub.No.G1841GE7)
2002 IMPREZA STi SERVICE MANUAL QUICK REFERENCE INDEX
GENERAL INFORMATION
SECTION
SPECIFICATIONS SPC
IDENTIFICATION ID
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.
FUJI HEAVY INDUSTRIES LTD. G1841GE1
SPECIFICATIONS
SPC
Page
1. Impreza .......................................................................................................2
IMPREZA
SPECIFICATIONS
1. Impreza
A: DIMENSIONS
Model Sedan Wagon OUTBACK STi
Overall length mm (in) 4,405 (173.4)
Overall width mm (in) 1,730 (68.1) 1,695 (66.7) 1,710 (67.3) 1,730 (68.1)
Overall height (at C.W.) mm (in) 1,465 (57.7), 1,475 (58.1),
1,440 (56.7) 1,440 (56.7)
1,485 (58.5)#4 1,495 (58.9)#4
Compartment Length mm (in) 1,890 (74.4) 1,845 (72.6) 1,890 (74.4)
Width mm (in) 1,380 (54.3)
Height mm (in) 1,180 (46.5), 1,200 (47.2), 1,200 (47.2),
1,180 (46.5)
1,125 (44.3)#5 1,150 (45.3)#5 1,150 (45.3)#5
Wheelbase mm (in) 2,525 (99.4)
Tread Front mm (in) 1,460 (57.5)#1,
1,485 (58.5) 1,460 (57.5) 1,490 (58.7)
1,465 (57.7)
Rear mm (in) 1,475 (58.1), 1,450 (57.1)#1,
1,455 (57.3) 1,480 (58.3)
1,480 (58.3)#3 1,455 (57.3)
Minimum road Without catalytic mm (in) 150 (5.9), 150 (5.9),
160 (6.3) --
clearance converter 155 (6.1)#2 155 (6.1)#2
With catalytic mm (in) 150 (5.9), 150 (5.9),
160 (6.3) 155 (6.1)
converter 155 (6.1)#3 155 (6.1)#3
#1: 1.6 L
#2: 2.0 L
#3: 2.0 L Turbo
#4: With roof rail
#5: With sun roof
B: ENGINE
Model 1.6 L Non-Turbo 2.0 L Turbo 2.0 L 2.5 L STi
Engine type Horizontally opposed, liquid cooled, 4-cylinder, 4-stroke gasoline engine
Valve arrangement Overhead camshaft type
