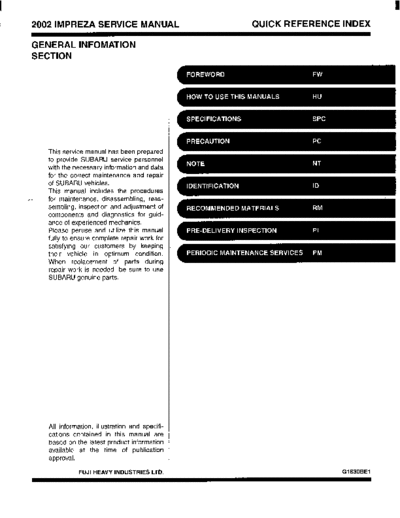

Image preview - the first page of the document
>> Download 1 - General Info documenatation <<
Text preview - extract from the document
I 3
2002 IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX
GENERAL INFOMATION
SECTION
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
c- . for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.
FUJI HEAVY INDUSTRIES LTD. G1830BE1
I
FOREWORD
~~~~
FWa
Page
1. Foreword.....................................................................................................2
FOREWORD
FOREWORD
~
1. Foreword
A: FOREWORD
These manuals are used when performing mainte-
nance, repair or diagnosis of the Subaru IMPREZA.
Applied model: GG***** and GD***** from 2001MY.
The additional manuals below are also available:
AUTOMATIC TRANSMISSION SERVICE MANU-
AL (Pub. No. G0853ZE)
The manuals contain the latest information at the
time of publication. Changes in the specifications,
methods, etc. may be made without notice.
FW-2
HOW TO USE THIS MANUALS
HU
- -
Paae
1. How to Use This Manuals ........................................................................... 2
I HOW TO USE THIS MANUALS
HOW TO USE THIS MANUALS
1. How to Use This Manuals
A: HOW TO USE THIS MANUALS
1. STRUCTURE
Each section consists of SCT that are broken down
into SC that are divided into sections for each com-
ponent. The specification, maintenance and other
information for the components are included, and
the diagnosis information has also been added
where necessary.
2. INDEX
The first page has an index with tabs. And at the
end of each section is an alphabetical index.
3. COMPONENTS
For each component, a composition drawing is in-
cluded.
4. SPECIFICATIONS
f f necessary, specifications are also included
5. INSPECTION
Inspections are included to be carried out before
and after maintenance.
6. MAINTENANCE
Maintenance instructions are provided for each
component. When multiple components comprise
one process, refer to the instructions for that pro-
cess for each component.
7. DIAGNOSIS
Tables showing a step-by-step process make it
easy to conduct diagnosis.
8. SI UNITS
Measurements in these manuals are according to
the SI units. Metric and yard/pound measurements
are also included.
HU-2
SPECIFICATIONS
SPC
1. lmpreza ...................,................,.......,................,.......,.................................2
Page a
IMPREZA
SPECIFICATIONS
1. lmpreza
A: DIMENSIONS
Model Sedan Waaon OUTBACK
Overall lennth mm (in) I 4,405 (173.4)
Overall width mm (in) 1,730 (68.1) 1,695 (66.7) 1,710 (67.3)
Overall height (at CW) mm (in) 1,465 (57.7), 1,475 (58.1),
1,440 (56.7)
1,485 (58.5)*2 1,495 (58.9)*2
Compartment Length mm (in) 1,890 (74.4) 1,845 (72.6)
Width mm (in) 1,380 (54.3)
I Height
mm (in)
I 1, I 80 (46.5)
I 1,200 (47.2),
1,150 (45.3)*3 I 1,200 (47.2),
1,150 (45.3)*3
Tread I Front mm (in) I
\ I
1.485 (58.5)
, \ ,
1.465 (57.7)
. \ ,
1.460 (57.5)
I \ ,
Rear mm (in) 1,475 (58.1),
1,455 (57.3) 1,455 (57.3)
1,480 (58.3)*1
Minimum road clearance mm (in) 150 (5.9), 150 (5.9),
160 (6.3)
155 (6.1)*1 155 (6.1)*1
B: ENGINE
Model Turbo 2.0 L 2.5 L
I valve arranqement I Overhead camshaft tvDe 1
Bore x Stroke mm (in) 92 x 75 99.5 x 79.0
(3.62 x 2.95) (3.917 x 3.1 IO)
Displacement cm3 (cu in) 1,994 (121.67) 2,457 (149.9)
ComDression ratio 8.0 10.0
I Firinq order I 1-3-2-4 -1
I Idle speed at Park/Neutral
position (NC OFF)
Maximum output kW (HP)/rpm
rpm I 750
169 (227)/6,000
650 (MT)
700 (AT)
123 (165)/5,600
Maximum torque N.m (kgf-m, ft-lb)/rpm 294 (30.0, 217)/4,000 226 (23.0, 166)/4,000
SPC-2
IMPREZA I
SPECIFICATIONS
C: ELECTRICAL
Model I
Turbo 2.0 L I
2.5 L
