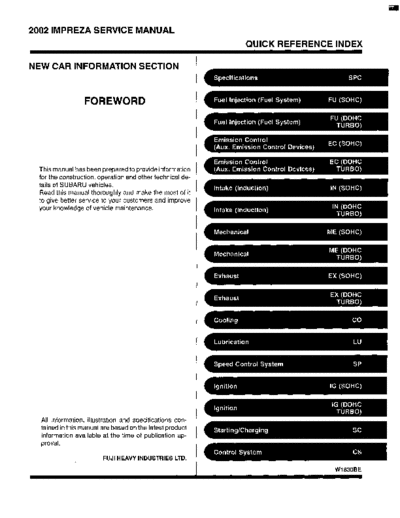

Image preview - the first page of the document
>> Download 8 - Car Information documenatation <<
Text preview - extract from the document
2002 IMPREZA SERVICE MANUAL
QUICK REFERENCE INDEX
NEW CAR INFORMATION SECTION
FOREWORD
This manual has been prepared to provide information
for the construction, operation and other technical de-
tails of SUBARU vehicles.
Read this manual thoroughly and make the most of it
to give better service to your customers and improve
your knowledge of vehicle maintenance.
All information, illustration and specifications con-
tained in this manual are based on the latest product
information available at the time of publication ap-
proval.
FUJI HEAVY INDUSTRIES LTD.
W1830BE
FOREWORD
QUICK REFERENCE INDEX
I) * - D
* e
FOREWORD
QUICK REFERENCE INDEX
FOREWORD
All right reserved. This book may not be reproduced or
copied, in whole or in part, without the written permis-
sion of FUJI HEAVY INDUSTRIES LTD., TOKYO JA-
PAN
SUBARU, @and @ are trademarks of FUJI
HEAVY INDUSTRIES LTD.
0 Copyright 2001 FUJI HEAVY INDUSTRIES LTD.
SPECIFICATIONS SPCa
Page
1. lmpreza . . . . . ...................... . . . . . ................. . . . . . . . . ......... . . . . . . . . .. . .. . 2
IMPREZA
Specifications
1. lmpreza
A: DIMENSIONS
Model Sedan Wagon OUTBACK
Overall length mm (in) 4,405 (173.4)
Overall width mm (in) 1,730 (68.1) 1,695 (66.7) 1,710 (67.3)
Overall height (at CW) mm (in) 1,440 (56.7) 1,465 (57.7), 1,475 (58.1),
I
1,485 (58.5)*2 I
1,495 (58.9)*2
Compartment Length mm (in) 1,890 (74.4) 1,845 (72.6)
Width mm (in) 1,380 (54.3)
Height mm (in) 1,180 (46.5) 1,200 (47.2), 1,200 (47.2),
1,I 50 (45.3)*3 1,I 50 (45.3)*3
Wheelbase mm (in) 2,525 (99.4)
Tread Front mm (in) 1,485 (58.5) 1,465 (57.7) 1,460 (57.5)
Rear mm (in) 1,475 (58.1), 1,455 (57.3) 1,455 (57.3)
1,480 (58.3)*1
Minimum road clearance mm (in) 150 (5.9), 150 (5.9), 160 (6.3)
155 (6.1)*1 155 (6.1)*1
B: ENGINE
Model Turbo 2.0 L 2.5 L
Engine type Horizontally opposed, liquid cooled, 4-cylinder, 4-stroke gasoline engine
I Valve arrangement I Overhead camshaft type
~~
Bore x Stroke mm (in) 92 x 75 99.5 x 79.0
(3.62 x 2.95) (3.917 x 3.1 10)
Displacement cm3 (cu in) 1,994 (121.67) 2,457 (149.9)
Compression ratio 8.0 10.0
Firing order 1-3-2-4
Idle speed at ParWNeutral rPm 650 (MT)
position (NC OFF) 750 700 (AT)
Maximum output kW (HP)/rpm 160 (215)/6,000 123 (165)/5,600
Maximum torque N.m (kgf-m,ft-lb)/rpm 294 (30.0, 217)/4,000 226 (23.0, 166)/4,000
SPC-2
IMPREZA
Specifications
Model Turbo 2.0 L 2.5 L
Ignitiontiming at idling speed BTDC/rpm MT: 10" f 10◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
