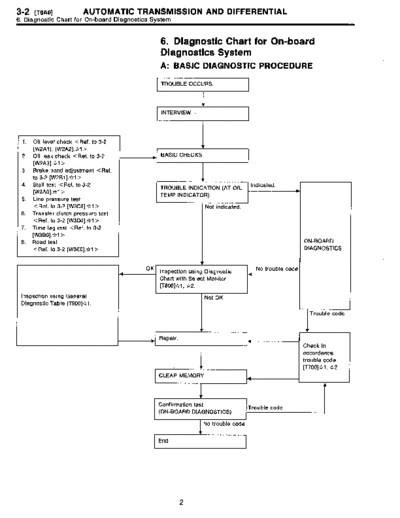

Image preview - the first page of the document
>> Download MSA5T9609A34476 documenatation <<
Text preview - extract from the document
3-2 [TSAO1 AUTOMATIC TRANSMISSION AND DIFFERENTIAL
6. Diagnostic Chart for On-board Diagnostics System
6. Diagnostic Chart for On-board
Diagnostics System
A: BASIC DIAGNOSTIC PROCEDURE
TROUBLE OCCURS .
INTERVIEW
1. Oil level check < Ref. to 3-2
[W2A1], [W2A2] .*1 >
2. Oil leak check < Ref. to 3-2 BASIC CHECKS
[W2A3] .x`r1 >
3. Brake band adjustment < Ref .
to 3-2 [W2B1] .t`r1 >
4. Stall test < Ref . to 3-2 Indicated .
TROUBLE INDICATION (AT OIL
[W3A0] .*1 > TEMP INDICATOR)
5. Line pressure test
< Ref. to 3-2 [W3C0] .*1 > Not indicated.
6. Transfer clutch pressure test
< Ref . to 3-2 [W3D0] .*1 >
7. Time lag test < Ref. to 3-2
[W3B0] .*1 >
8. Road test ON-BOARD
< Ref . to 3-2 [W3E0] .*1 > DIAGNOSTICS
No trouble code
Inspection using Diagnostic
Chart with Select Monitor
I [T800]*1, *2.
Inspection using General Not OK
Diagnostic Table [T900]*I .
Trouble code
Repair.
Check in
accordance
trouble code
[T700]*1, *2 .
CLEAR MEMORY
Confirmation test Trouble code
(ON-BOARD DIAGNOSTICS)
No trouble code
End
2
AUTOMATIC TRANSMISSION AND DIFFERENTIAL [T6D1] 3-2
6. Diagnostic Chart for On-board Diagnostics System
D: LIST OF TROUBLE CODE
1 . TROUBLE CODE
Abbr .
Trouble code Item Content of diagnosis Page
(Select monitor)
Detects open or shorted drive
11 Duty solenoid A pLDTY -
circuit, as well as valve seizure .
Detects open or shorted drive
12 Duty solenoid B LUDTY -
circuit, as well as valve seizure .
Detects open or shorted drive
13 Shift solenoid 3 OVR -
circuit, as well as valve seizure .
Detects open or shorted drive
14 Shift solenoid 2 SFT2 -
circuit, as well as valve seizure .
Detects open or shorted drive
15 Shift solenoid 1 SFTi -
circuit, as well as valve seizure .
Detects open or shorted input
21 ATF temperature sensor ATFT -
signal circuit.
Detects open or shorted input
22 Mass air flow signal AFM 4
signal circuit .
Detects open or shorted input
23 Engine speed signal EREV 6
signal circuit.
Detects open or shorted drive
24 Duty solenoid C 4WDTY -
circuit, as well as valve seizure .
Detects open or shorted input
25 Torque control signal TQ .CT 8
signal circuit.
Detects open or shorted input
31 Throttle position sensor THV 10
signal circuit.
Detects open or shorted input
32 Vehicle speed sensor 1 VSP1 -
signal circuit.
Detects open or shorted input
33 Vehicle speed sensor 2 VSP2 -
signal circuit .
