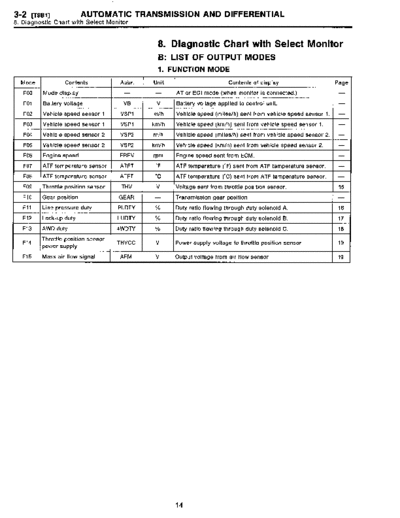

Image preview - the first page of the document
MSA5T9609A34478


>> Download MSA5T9609A34478 documenatation <<

Text preview - extract from the document
3-2 [raB11]              AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor


                                                  8. Diagnostic Chart with Select Monitor
                                                  B: LIST OF OUTPUT MODES
                                                 1 . FUNCTION MODE
  Mode            Contents              Abbr.   Unit                        Contents of display                     Page
   F00    Mode display                    -      -     AT or EGI mode (when monitor is connected .)                  -

   F01    Battery voltage                VB      V     Battery voltage applied to control unit .                     -

   F02   Vehicle speed sensor 1         VSPi    m/h    Vehicle speed (miles/h) sent from vehicle speed sensor 1 .    -

   F03   Vehicle speed sensor 1         VSP1    km/h   Vehicle speed (km/h) sent from vehicle speed sensor 1 .      -

   F04   Vehicle speed sensor 2         VSP2    m/h    Vehicle speed (miles/h) sent from vehicle speed sensor 2.    -

   F05   Vehicle speed sensor 2         VSP2    km/h   Vehicle speed (km/h) sent from vehicle speed sensor 2.       -

   F06   Engine speed                   EREV    rpm    Engine speed sent from ECM .                                 -

   F07   ATF temperature sensor         ATFT
