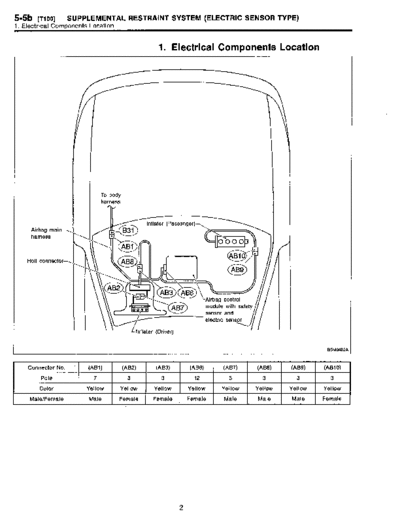

Image preview - the first page of the document
>> Download MSA5T9609A34479 documenatation <<
Text preview - extract from the document
5-5b [T1 00] SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
1 . Electrical Components Location
1 . Electrical Components Location
To body
harness
Inflater (Passenger)
Airbag main B31
harness
0000
AB1
B10
Roll connector AB8
v
AB3 AB6
Airbag control
module with safety
0 0~ AB7
sensor and
electric sensor
Inflater (Driver)
85M0402A
Connector No . (AB1) (AB2) (AB3) (AB6) (AB7) (AB8) (AB9) (AB10)
Pole 7 3 3 12 3 3 3 3
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female f Male I Female I Female I Female I Male I Male I Male I Female
