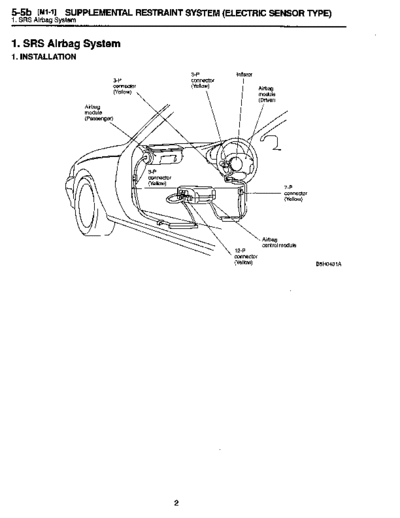

Image preview - the first page of the document



>> Download MSA5T9603A29703 documenatation <<

Text preview - extract from the document

5-5b    IM1-1]   SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
1 . SRS Airbag System


1 . SRS Airbag System
1 . INSTALLATION

                                                                  3-P          Inflator
                                      3-P                         connector
                                      connector                   (Yellow)                Airbag
                                      (Yellow)                                            module
                                                                                          (Driver)
                        Airbag
                        module
                        (Passenger)




                                                  3-P
                                                  connector
                                                  (Yellow)
                                                                                                     7-P
                                                                                                     connector
                                                                                                     (Yellow)




                                                                                           Airbag
                                                                                           control module
                                                                              12-P
                                                                              connector
                                                                              (Yellow)                           B5H0431A




                                                              2
     SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE) [Ml-2I 5-5b
                                                                                  1 . SRS Airbag System


2. FUNCTION
The SRS airbag is provided as an auxiliary driver and passenger front seat restraint system to be
used in combination with the seat belt . When an impact greater than a set level is applied to the
front of the vehicle, the sensor senses it and generates an electrical pulse to inflate the bag in the
airbag module, thus preventing the upper bodies of the driver and passenger in the front seat from
impacting the steering wheel, instrument panel and windshield .



                 Driver side                                 Passenger side


           Safety sensor
            and electric
            sensor,




                                                                                         Collision




                                                                                         Safety sensor
                                                                                         and electric
                                                                                         sensor detect a
                                                                                         set strength of
                                                                                         collision .
                                                                                         Operation of
                                                                                         inflator
                                                                                         Nitrogen gas is
                                                                                         generated .
                                                                                         The Airbag
                                                                                         inflation
                                                                                         completes .
                                                                                         Discharge of gas




                                                                                         Completion




                                                                                              1-151-10656A




                                                  3
