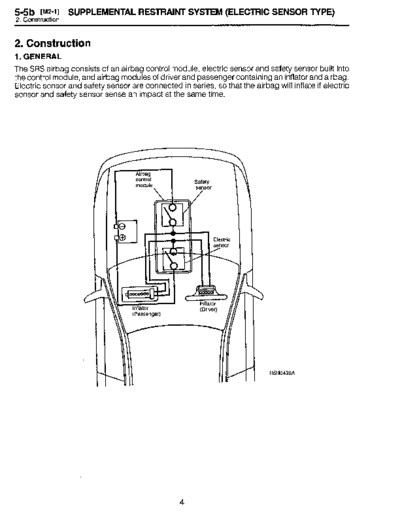

Image preview - the first page of the document



>> Download MSA5T9603A29704 documenatation <<

Text preview - extract from the document

5-5b    IM2-1l    SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
2. Construction


2. Construction
1 . GENERAL
The SRS airbag consists of an airbag control module, electric sensor and safety sensor built into
the control module, and airbag modules of driver and passenger containing an inflator and airbag .
Electric sensor and safety sensor are connected in series, so that the airbag will inflate if electric
sensor and safety sensor sense an impact at the same time .




                                                                             H5H0432A




                                                  4
     SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)                           [M2-4] 5-5b
                                                                                    2. Construction


4. SAFETY SENSOR AND ELECTRIC SENSOR
Safety sensor and electric sensor are built into the airbag control module.
Safety sensor is the magnet piston type sensor. If the sensor receives a frontal impact exceeding
a certain limit, the mass in the sensor moves forward to turn the switch ON .
The electric sensor consists of a piezo-electric device and generates a voltage corresponding to
the deceleration speed that occurs in the body.


   SAFETY SENSOR

         Ma s (Magnet)
                               Spring




                                                                    1




                     Reed Switch



  ELECTRIC SENSOR



                                        Piezo-electric device




                                                                    11




                                        Bonding wire




                                                                                        B5H0397A




                                                                5
5-5b      IMZ-10I   SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
2. Constr ucti on


10. WARNING AND CAUTION LABELS




                                                                                                                          B5H0433A

     SRS AIRBAG CONTROL UNIT
     CAUTION                                    Precaution
     " READ SERVICE MANUAL                      * lisez le manuel d'entretien              '~`J~~'
