Service Manuals, User Guides, Schematic Diagrams or docs for : . Car Manuals Subaru Legacy 1995-1999 Approved Subaru Legacy 1996 1996 Service Manual 1996 LEGACY RHD (RIGHT HAND DRIVE) SERVICE MANUAL SUPPLEMENT General Information Section MSA5T9603A29698

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

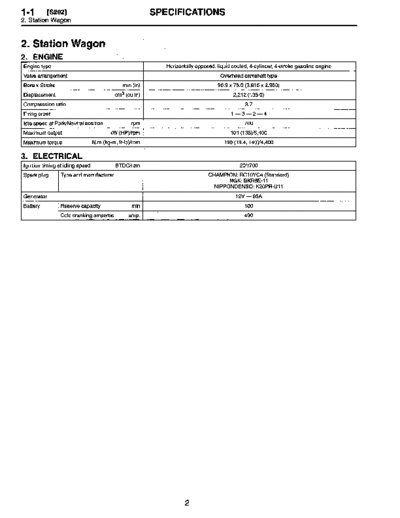

Image preview - the first page of the document
MSA5T9603A29698


>> Download MSA5T9603A29698 documenatation <<

Text preview - extract from the document
1-1       [s2o2]                                            SPECIFICATIONS
2. Station Wagon


2. Station Wagon
2. ENGINE
Engine type                                                    Horizontally opposed, liquid cooled, 4-cylinder, 4-stroke gasoline engine
Valve arrangement                                                                     Overhead camshaft type
Bore x Stroke                                   mm (in)                              96 .9 x 75 .0 (3 .815 x 2 .953)
Displacement                                cm3 (cu in)                                     2,212 (135 .0)
Compression ratio                                                                                 9.7
Firing order                                                                               1-3-2-4
Idle speed at Park/Neutral position                 rpm                                           700
Maximum output                            kW (HP)/rpm                                      101 (135)/5,400
Maximum torque                    N .m (kg-m, ft-Ib)/rpm                                190 (19 .4,140)/4,400

3. ELECTRICAL
Ignition timing at idling speed             BTDC/rpm                                           20
