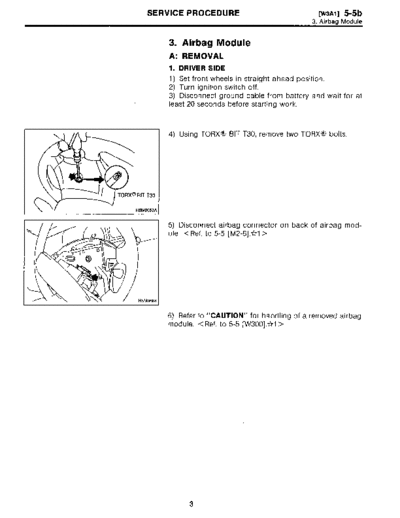

Image preview - the first page of the document
MSA5T9603A29707


>> Download MSA5T9603A29707 documenatation <<

Text preview - extract from the document
SERVICE PROCEDURE                            [w3A11 5-5b
                                            3. Airbag Module


   3. Airbag Module
   A: REMOVAL
   1 . DRIVER SIDE
   1) Set front wheels in straight ahead position .
   2) Turn ignition switch off.
   3) Disconnect ground cable from battery and wait for at
   least 20 seconds before starting work.



   4) Using TORX9 BIT T30, remove two TORXO bolts.




   5) Disconnect airbag connector on back of airbag mod-
   ule. < Ref. to 5-5 [M2-6] .*1 >




   6) Refer to "CAUTION" for handling of a removed airbag
   module. < Ref . to 5-5 [W300] .*1 >




         3
