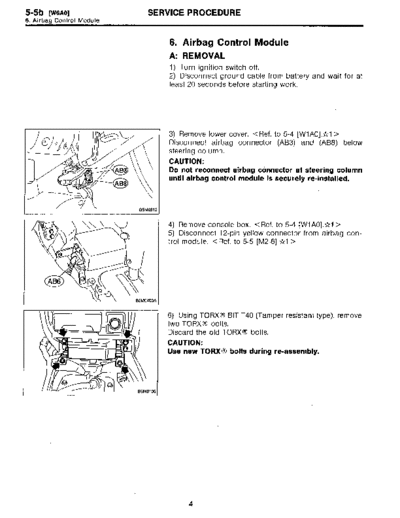

Image preview - the first page of the document
>> Download MSA5T9603A29708 documenatation <<
Text preview - extract from the document
5-5b [W6A0] SERVICE PROCEDURE
6. Airbag Control Module
6 . Airbag Control Module
A : REMOVAL
1) Turn ignition switch off.
2) Disconnect ground cable from battery and wait for at
least 20 seconds before starting work.
3) Remove lower cover. < Ref . to 5-4 [W1A0] .*1 >
Disconnect airbag connector (AB3) and (AB8) below
steering column.
CAUTION:
Do not reconnect airbag connector at steering column
until airbag control module is securely re-installed .
4) Remove console box. < Ref. to 5-4 [W1A0] .*1 >
5) Disconnect 12-pin yellow connector from airbag con-
trol module. < Ref. to 5-5 [M2-6] .*1 >
AB6 9~v~
BSM0400A
6) Using TORXS BIT T40 (Tamper resistant type), remove
two TORXS bolts.
Discard the old TORXM bolts.
CAUTION:
Use new TORXS bolts during re-assembly.
e
B5M0105 I
4
