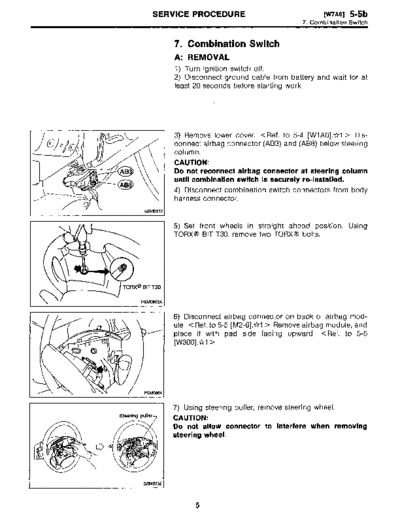

Image preview - the first page of the document

>> Download MSA5T9603A29709 documenatation <<

Text preview - extract from the document

SERVICE PROCEDURE [W7AO] 5-5b
7. Combination Switch

7. Combination Switch
A: REMOVAL
1) Turn ignition switch off.
2) Disconnect ground cable from battery and wait for at
least 20 seconds before starting work.

3) Remove lower cover. < Ref, to 5-4 [W1A0) .*1 > Dis-
) connect airbag connector (AB3) and (AB8) below steering
0)0 C
J column .
CAUTION:
~ AB Do not reconnect airbag connector at steering column
until combination switch is securely re-installed .
4) Disconnect combination switch connectors from body
,., . -^o/ harness connector .
G5M0312

5) Set front wheels in straight ahead position . Using
TORX9 BIT T30, remove two TORX9 bolts.

6) Disconnect airbag connector on back of airbag mod-
ule. < Ref. to 5-5 [M2-6] .*1 > Remove airbag module, and
place it with pad side facing upward . < Ref. to 5-5
[W300].*1 >

7) Using steering puller, remove steering wheel .
CAUTION :
Do not allow connector to interfere when removing
steering wheel.

5
5-5b [W7B1) SERVICE PROCEDURE
7. Combination Switch

8) Remove steering column cowers .
9) Removing two retaining screws, remove combination
switch .

B : ADJUSTMENT
1 . CENTERING ROLL CONNECTOR
Before installing steering wheel, make sure to center roil
connector built into combination switch .
1) Make sure that front wheels are positioned straight
ahead .
2) Install steering gearbox, steering shaft and combina-
tion switch properly. Turn roll connector pin (J) clockwise
until it stops.

3) Then, back off roll connector pin 1~ approximately
2 .65 turns until "A" marks aligned.

C: INSTALLATION
1) Before installing combination switch, check to ensure
that combination switch is off and font wheels are set in
the .straight ahead position .
CAUTION:
Failure to do this might damage roll connoctok.
2) Install column cover and center roll connector.

3) Install steering wheel in neutral position . Carefully
insert roll connector pin 1(~ into hole on steering wheel .
NOTE :
If steering wheel angle requires fine adjustment, adjust
tie-rod. < Ref. to 4-3 [W3FOj .*1 >
4) Install airbag module and lower cover in the reverse
order of removal.
