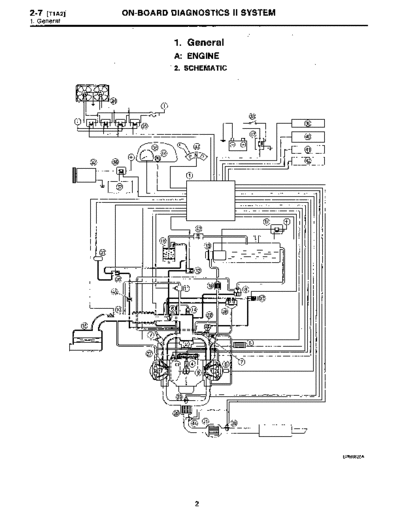

Image preview - the first page of the document
MSA5T9603A29711


>> Download MSA5T9603A29711 documenatation <<

Text preview - extract from the document
2-7    [T1A2]   ON-BOARD DIAGNOSTICS II SYSTEM
1 . General


                          1 . General
                          A: ENGINE
                          2. SCHEMATIC




                                                 B2M0828A
                                   ON-BOARD DIAGNOSTICS II SYSTEM                               [Tiq2] 2-
                                                                                                  1 . General


 1~Engine control module (ECM)                       ~    Radiator fan
~2 Ignition coil                                     ~s   Radiator fan relay
~3 Ignitqr                                           ~s   Pressure sources switching solenoid valve
~4 Crankshaft position sensor                        ~    Knock sensor
~5 Camshaft position sensor                          ~    Back-pressure transducer
   Throttle position sensor                          ~s   Front oxygen sensor
~7 duel injectors                                    ~o   Rear oxygen sensor (Except California model)
~8 Pressure regulator                                ~    Pressure sensor
   Engine coolant temperature sensor                 ~z   A/C compressor
~o Mass air flow sensor                              ~    Inhibitor switch
   Idle air control solenoid valve                   ~    CHECK ENGINE malfunction indicator lamp (MIL)
~z Purge control solenoid valve                      ~    Tachometer
0 Fuel pump                                          ~s   A/C relay
0 PCV valve                                          ~    A/C control module
~s Air cleaner                                       ~e   Ignition switch
      Canister                                       ~ Transmission control module (TCM)
~     Main relay                                     ~o Vehicle speed sensor 2
~a    Fuel pump relay                                ~ Data link connector (For Subaru select monitor)
~s    Fuel filter                                    @ Data link connector (For Subaru select monitor and
~o    Front catalytic converter                         OBD-II general scan tool)
      Rear catalytic converter                       @ Two way valve
~2    MGR valve                                      ~a Rear oxygen sensor (California model only)
      EGR control solenoid valve                     ~ Filter




                                                 3
